Swimming Pool Lights — Professional LED Pool Lighting Solutions
IP68 submersible LED pool lights designed, created for the commercial industry, eye-catching feature for the home. Low cost, stainless steel 304/316 – high power up to 36W from, and UV resistant PC. Great for inground pools, above ground pools, spas and water features.
Get Instant Quote
3W–36W
Power Range
IP68
Waterproof Rating
50,000+
Rated Hours
SS304/316
Housing Material
RGB/RGBW
Color Options
DMX512/RF
Control Protocol
Why Your Pool Project Needs Reliable Pool LED Lights
Nighttime pool illumination correlates directly to guest satisfaction scores on hospitality projects and property value in residential developments. For pool owners evaluating their lighting options, changing incandescent pool light bulbs to LED pool and spa lights solves three nightly annoyances for pool builders and facility managers every summer.
Traditional Incandescent
Traditional incandescent pool lights—incandescent rated at 300W to 500W (some older units push 500w) for halogen or PAR56 light bulbs—use 10 to 15 times as much electricity as comparable LED fixtures. A single 300-watt incandescent at 8 hours a night at $0.15/kWh costs about $131 a year in electricity. A 36W LED offers the same amount of light at a yearly cost of about $16 in electricity. But if you use an incandescent, it will only last between 2,000 and 5,000 hours before burning out, requiring drain or diver-assisted replacement. This adds $200 to $400 to the cost of labor per fixture/per replacement.
LED Swimming Pool Lights
LED swimming pool lights cut out all of those maintenance costs. With low operating voltage 12 V or 24 V, well below the dangerous 50 V mandated in IEC 60364 for wet environments, pool LED lighting is cooler, longer-lasting, and offers a color-changing feature that just isn’t possible with incandescent. As a result you will pay less for power, spend less on maintenance and enjoy a lighting effect that really does turn the pool area into a proper Night Time, for swimming at night.
The Best Swimming Pool Lights: A Selection to the Guangqi LED Pool Light Series
There are 4 different lines of pool light products leaving our factory each designed for particular installation applications. Each fixture employs either Cree, Osram or Bridgelux LED chips the same brands of chips as other leading brands such as Pentair and Hayward and are complemented by our own optical lens designs and thermals.
Inground Pool Lights (Stainless Steel 304/316 + Tempered Glass)
Our main underwater pool Lights. Features an all-metal construction with a stainless steel face ring and a tempered glass lens that can handle both chlorinated and saltwater conditions. Use 304 grade fittings for regular chlorinated swimming pool applications and 316 grade for saltwater pool applications and for use in salt-laden atmospheres.

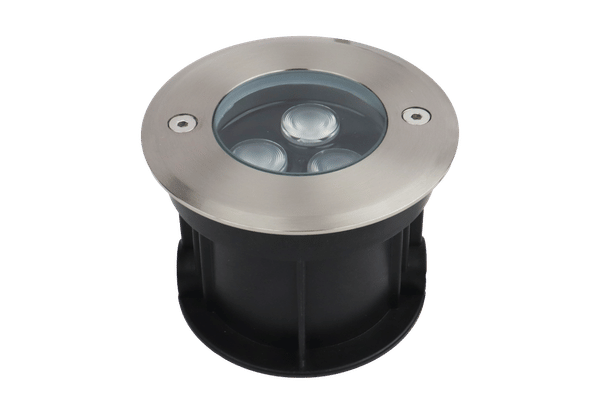

3W Inground LED Pool Light
Dimensions: φ100 × H80 mm
Power: 3W
Voltage: DC12/24V, AC12/24V
Beam Angle: 15° / 30° / 45° / 60°
CCT: 2700K–6500K / RGB / RGBW
CRI: >80 (white modes)
Control: DMX512 / TTL / RF Remote
IP Rating: IP68
Life: 50,000+ hours
Warranty: 3 years

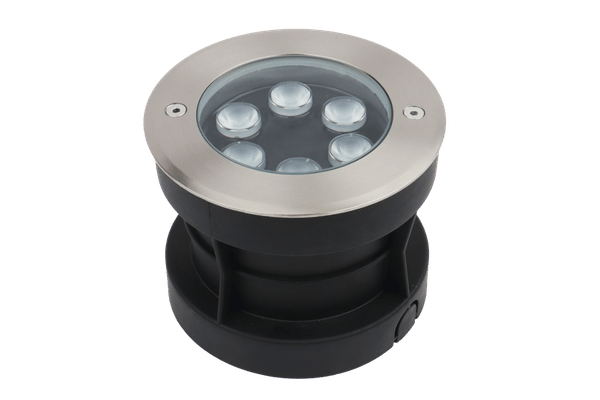

6W/7W Inground LED Pool Light
Dimensions: Ø130 × H108 mm
Power: 6W / 7W
Voltage: DC12/24V, AC12/24V
Beam Angle: 15° / 30° / 45° / 60°
CCT: 2700K–6500K / RGB / RGBW
CRI: >80 (white modes)
Control: DMX512 / TTL / RF Remote
IP Rating: IP68
Life: 50,000+ hours
Warranty: 3 years

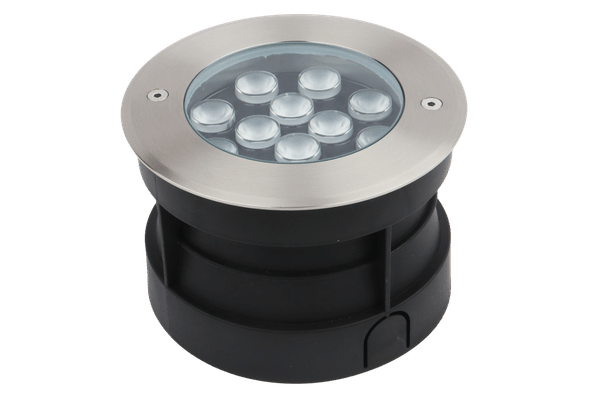

12W Inground LED Pool Light
Dimensions: φ170 × H128 mm
Power: 12W
Voltage: DC12/24V, AC12/24V
Beam Angle: 15° / 30° / 45° / 60°
CCT: 2700K–6500K / RGB / RGBW
CRI: >80 (white modes)
Control: DMX512 / TTL / RF Remote
IP Rating: IP68
Life: 50,000+ hours
Warranty: 3 years

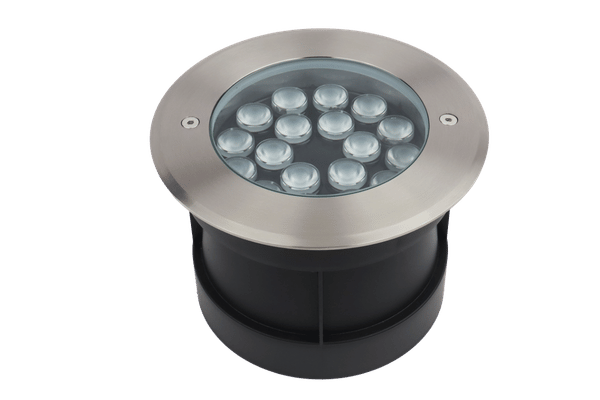

18W Inground LED Pool Light
Dimensions: φ180 × H117 mm
Power: 18W
Voltage: DC12/24V, AC12/24V
Beam Angle: 15° / 30° / 45° / 60°
CCT: 2700K–6500K / RGB / RGBW
CRI: >80 (white modes)
Control: DMX512 / TTL / RF Remote
IP Rating: IP68
Life: 50,000+ hours
Warranty: 3 years
Surface-Mounted Pool Lights (Stainless Steel 304)
A nicheless pool light design for retrofit applications — installs directly onto existing pool surfaces with no need to cut a niche into the wall (waterproof screws only). Slim at 50 mm thick, the fixtures sit flush to the wall surface. Compatible with standard niche dimensions used by Pentair, Hayward, and Jandy installations, making it a drop-in nicheless alternative. Each fixture is supplied complete with RF remote control with 10 static colour modes (R, G, B, Y, W, Warm White) and multi-color fade, flash, and party sequence modes.

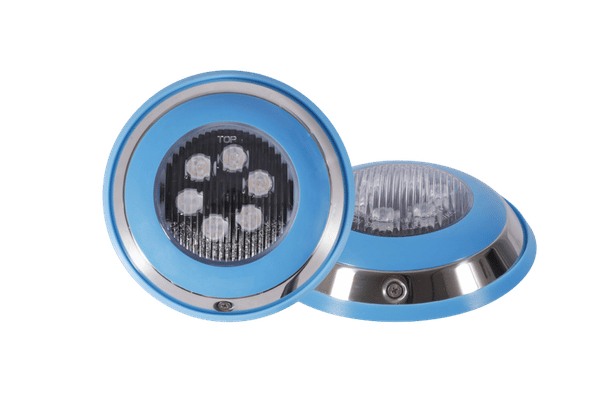

GQ-ST180 — 6W Surface Mount
Dimensions: φ180 × H50 mm
Power: 6W
Voltage: AC12V / AC24V
Color: R/G/B/Y/W/WW/RGB
Material: 304 Stainless Steel
Control: RF Remote (10 modes)

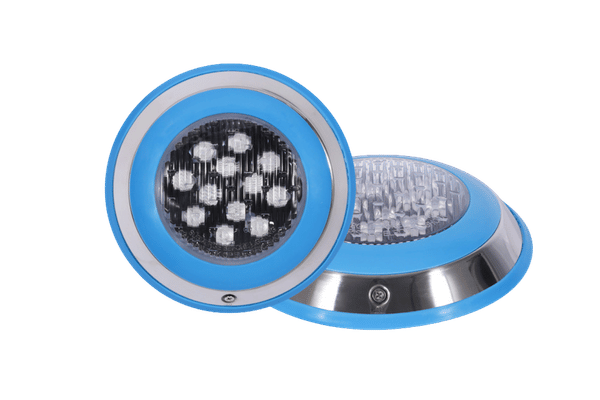

GQ-ST230 — 12W Surface Mount
Dimensions: φ230 × H50 mm
Power: 12W
Voltage: AC12V / AC24V
Color: R/G/B/Y/W/WW/RGB
Material: 304 Stainless Steel
Control: RF Remote (10 modes)

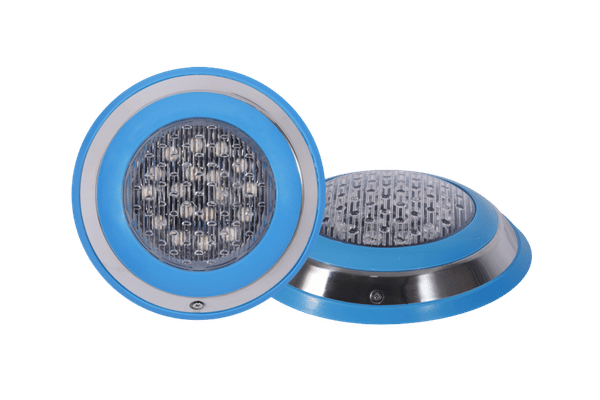

GQ-ST290 — 18W/24W Surface Mount
Dimensions: φ295 × H50 mm
Power: 18W or 24W
Voltage: AC12V / AC24V
Color: R/G/B/Y/W/WW/RGB
Material: 304 Stainless Steel
Control: RF Remote (10 modes)

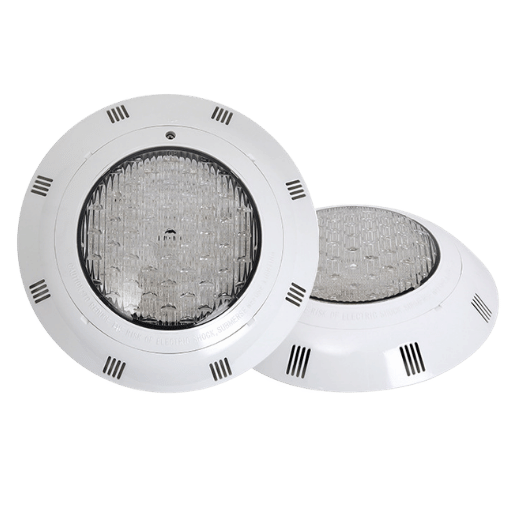

Above Ground Pool Lights (UV-Resistant PC Housing)
Designed for above ground pools with polycarbonate-body LED pool lamps, in the unsustainable conditions of stainless steel weight. Each lamp body has been encapsulated in epoxy resin which results in a fully waterproof seal (up to IP68). VDE rated wire with a built-in water separator adds another layer of protection. Supports mono color and RGB/RGBW operation using the RF remote control enclosed.

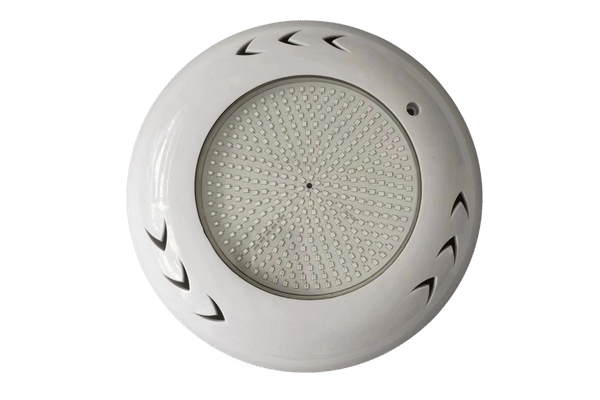

GQ-PC230 — 9W/12W Above Ground
Dimensions: φ230 × H50 mm
Power: 9W or 12W
LED Type: High Power / SMD
Color: Monochrome / RGB / RGBW
Voltage: AC/DC 12–24V
Material: UV-resistant PC
Packing: 10 pcs/ctn (495×255×380 mm)

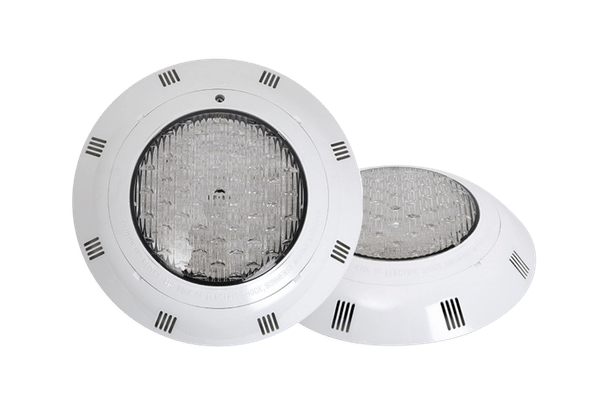

GQ-PC290 — 18W/24W Above Ground
Dimensions: φ295 × H50 mm
Power: 18W or 24W
LED Type: High Power / SMD
Color: Monochrome / RGB / RGBW
Voltage: AC/DC 12–24V
Material: UV-resistant PC
Packing: 10 pcs/ctn (635×330×440 mm)

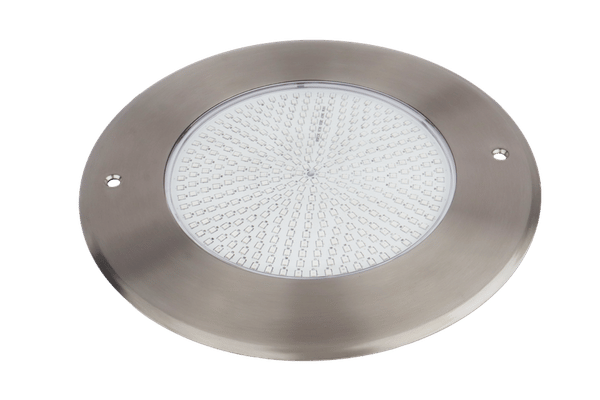

GQ-ST260 — 36W High-Power Commercial Pool Light
This is our top-selling swimming pool light fixture built for large commercial pools, hotel resort water features, fountain lighting, and landscape lighting installations where covering a larger pool surface with high output is primary concern. Also serves as a powerful spa light for oversized spa and hot tub installations. Its 360-piece LED chip register 36W of power at 120 beam width delivers large scale, uniform illumination across a wide shallow pool and a large number of smaller pools in a single wash covering 400-500 sq ft per fixture.
GQ-ST260 — 36W Commercial
Dimensions: Ø260 mm
Power: 36W
LED Count: 360 pcs
Beam Angle: 120°
Voltage: AC12V
CCT: 1800K–6500K / RGB
Chips: CREE / Osram / Epistar / Philips
Material: 304 Stainless Steel
Control: RF Remote / DMX512
Cable Length: Customizable
Product Selection Decision Matrix
| Application | Recommended Series | Power | Material | Install Type | Best For |
|---|---|---|---|---|---|
| Residential inground pool | Inground SS | 6W–18W | SS304 + Glass | Niche mount | New construction |
| Saltwater / coastal pool | Inground SS | 6W–18W | SS316 + Glass | Niche mount | Corrosion resistance |
| Retrofit / existing pool | GQ-ST Series | 6W–24W | SS304 | Surface mount | No niche needed |
| Above ground pool | GQ-PC Series | 9W–24W | UV-resistant PC | Wall mount | Lightweight install |
| Commercial / hotel pool | GQ-ST260 | 36W | SS304 | Surface mount | Max coverage 400–500 sq ft |
| Fountain / water feature | Inground SS (3W) | 3W | SS304 | Recessed | Narrow beam (15°) |
| Spa / hot tub | Inground SS | 3W–6W | SS316 | Niche mount | High-temp rated |
| DMX512 light show | Inground SS / GQ-ST260 | 6W–36W | SS304/316 | Any | Multi-fixture sync |
Procurement Tip: Transformer Sizing
In systems requiring multiple fixtures, the wattage of each fixture adds on to overall draw of the system when selecting the bottom rated low-voltage transformer size. An 8-fixture installation using 36W lights consumes 292W of power; an 8324/2006 can be installed to allow a 40-80% headroom margin in 6-fixture installation. An undersized transformer results in voltage collapse, dimming, and client complaints about LED driver life. We attach transformer recommendation to every project estimate.
Once you’ve decided that this is the appropriate fixture for your pool, what do you compare it to? How do you know for certain that the LED alternative isn’t weaker than the incandescent bulb you are replacing?
LED Pool Lights vs Incandescent & Halogen — Performance Comparison
Here is a concise comparison of the standard 300W incandescent bulb for pools and our 36W output LED pool lights delivering similar light from submerged LED arrays . All energy savings were calculated using the average U.S. residential electricity rate of $0.15/kWh (EIA, 2024).
Parameter
Incandescent (300W)
Guangqi LED (36W)
Advantage
Power Consumption
300W
36W
88% less energy
Annual Energy Cost (8 hrs/day)
$131.40
$15.77
$115.63 saved/year
Rated Lifespan
2,000–5,000 hrs
50,000+ hrs
10–25× longer
Years Before Replacement (8 hrs/day)
0.7–1.7 years
17+ years
Fewer service calls
Operating Voltage
120V AC
12V/24V AC/DC
Low-voltage safety
Operating Temperature
High (burns at 200°C+)
Low (40–60°C surface)
Reduced burn risk
Color Options
Single color (warm white)
Warm white / cool white / 2700K–6500K + RGB/RGBW
Unlimited color modes + light shows
Dimming & Control
On/Off only
DMX512 / RF Remote / App
Full automation ready
IP Rating
Varies (gasket seal)
IP68 (epoxy potted)
Superior waterproof
CRI (Color Rendering)
100 (blackbody)
80+ (white modes)
Incandescent higher CRI
Incandescent lighting has a black body radiant spectrum, so its natural white light body has a CRI of 100. Guangqi LED lights produce white CRI >80 light in dry-to-cool white ( K) mode, which gives underwater imagery equivalency to incandescent lighting in terms of color depiction quality. This is more than adequate for real-time color swim analysis, as moisture in underwater instrumentation belays any inaccuracy caused by CRI <100 lighting effects by the physical human eye.
$578+
Estimated energy savings per light over 5 years — replacing a 300W incandescent with a 36W LED
(8 hrs/day, $0.15/kWh, U.S. national average)
Swimming Pool Light Fixture Success: Hotel & Resort Project Results
Guangqi LED pool lighting products have been installed in the Middle East, Asia, Europe, Canada and United States across hospitality, residential, and commercial aquatic projects. Here are three use scenarios explain how Guangqi engineers designed different fixture lines for different pool lighting requirements.

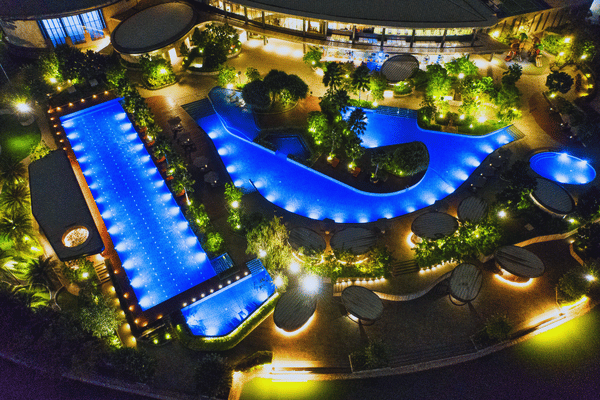

Application 1: Hotel Resort Pool — Ambient Nighttime Experience
A 120-room seaside resort decided that their aging halogen pool lights needed upgrading to reduce maintenance costs for their 2512 meter main pool and their two spa pools. Guangqi delivered 8 GQ-ST260 (36W) fixtures for the main pool and 4 Inground 6W fixtures for the spa pools. A DMX512 automation system synchronized the pool lights with the nightly entertainment schedule, creating dynamic lighting effects and programmable light shows. Management reported a measurable revenue boost for the resort – poolside dining shipments increased for the 45-90 minute period during which the pools were brightly illuminated for the first month post-upgrade.

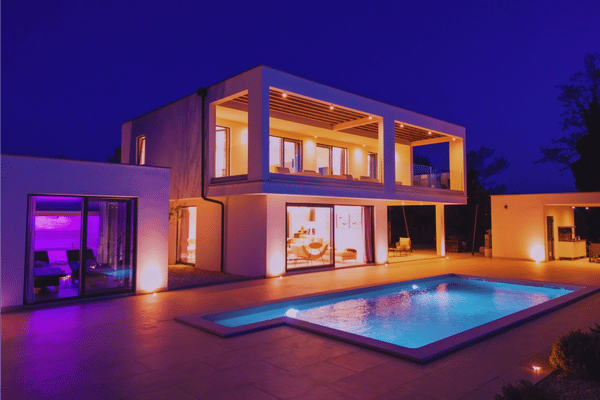

Application 2: Residential Pool Builder — Turnkey Inground Lighting
A southeastern United States pool building company requires clients choosing our German made inground SS304 (12W) lights for new pool projects. Their standard residential pool (1530ft) employs 3 total fixtures spaced along the longitudinal axis. Their choice was based on three primary factors: minimal visible variation in color temperature between fixtures (see above), excellent ingress protection with no field failures in over 18 months of use (see above), and competitive price to meet client budget constraints

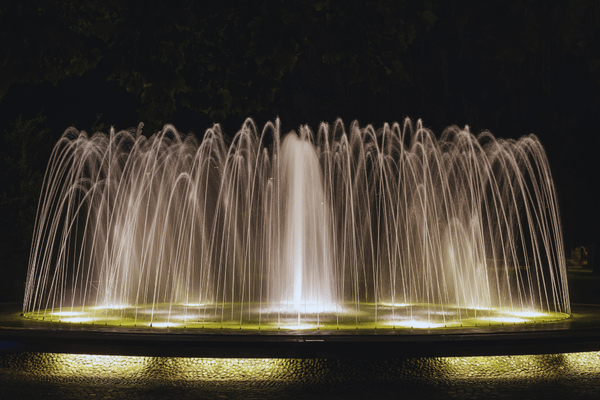

Application 3: Water Feature & Fountain — Architectural Lighting
Fountain/water feature LED project: specialized narrow beam angles are required to produce a tight beam of light in moving water. 3W 15 beam optics inground fixtures are specified for these projects. Municipal water feature project featured 24 fixtures DMX512 light shows programmed to water jet choreography. Marine grade 316 stainless steel 304 cannot corrode from multiple years of constantly recirculated chemically treated project water.
Procurement Note: Multi-Light Synchronization
For large installations with more than 4 fixtures, RF remote control may be ineffective due to interference with multiple controllers – color mismatch errors occur. For any commercial project we advise DMX512 protocol. DMX512 provides 512 channels of diumal addressability on one data line, for perfect timing of color and brightness sequencing on every fixture.
Commercial Swimming Pool Lights: Certifications & IP68 Waterproof Standards
Every Guangqi LED pool light is tested to international standards before leaving factory. Specifications and certifications provided here standards for electrical safety, waterproofing, materials, and environmental compliance- the documentation institutional buyers and electrical inspectors demand.
CE
EU Safety Directive
2014/35/EU (LVD)
RoHS
Directive 2011/65/EU
Lead-free, compliant
IP68
IEC 60529
Dust-tight + 1.5m submersion
50,000+ hrs
Rated Life
Per IES LM-80 methodology
SS304/316
ASTM A240
Corrosion-resistant grade
3-Year
Manufacturer Warranty
Full replacement
IP68 Testing Protocol
IP68 is the IEC 60529 maximum ingress protection spec. “6” means total dust exclusion after 8 hours in a test chamber. “8” means continuous submersion capability beyond 1 meter depth. Every batch undergoes an independent test of 1.5 meters water submersion for 72 hours with a dielectric strength test of the LED driver to verify 0% moisture ingress in the LED driver cavity. Our housing seal uses a triple-layer approach: silicone face ring gasket between stainless steel face and glass lens, waterproof cable gland, epoxy potting of LED driver board.
For pools with salt water circ water chlorinators, we advise 316 stainless steel. Standard 304 stainless steel can be used in chlorinated fresh water pools, but accelerated pitting corrosion occurs with salt based chloride pools – 3,000-4,000 ppm NaCl at salt chlorinators.75 MS in 2%.
Sourcing Guide: Pricing, Lead Time & OEM/ODM Support
Factory direct pricing no mark up no branding. As the manufacturer, we control the entire process from mold toolings and optical design to SMT assembly and IP68 sealing.
Pricing Factors
Prices vary based on power (3-36W), housing material (PC is cheapest, SS 304 mid, SS 316 top), LED chip brand (Epistar/Bridgelux standard, Cree/Osram/Philips premium), volume purchase quantity. Quantity discounts apply at standard volume break points. Please tell us your project parameters for a price quote: We will reply within 1 business day.
Lead Time
In-stock: 3-7 working days. Custom: 15-25 working days custom ordered light with specific beam angle, cable length, color temp, or printed packaging. Custom rush production is available at a premium rate.
OEM/ODM Capabilities
Lighting brands, pool equipment distributors, hospitality procurement groups can take advantage of full OEM and ODM programs offered. OEM programs include custom engraving of logo on stainless steel face rings, private-label retail packaging with your artwork, custom lengths of cable and plug types, private-label documentation. ODM projects can include modification of design of optical lens, thermal management profile, housing dimensions, driver specifications as per your product specifications. Minimum OEM order quantity begins with 100pcs per SKU.
After-Sales Support
All our products are shipped with 3-year manufacturer warranty covering LED chip failure, driver failure and waterproof seal failure. We also have a dedicated team of technical support in place which can offer remote installation procedures, wiring diagrams and troubleshooting procedures in English and Mandarin Chinese. Replacement units are shipped out within 48 hours of warranty requesting with photograph documentation.
Swimming Pool Light Tools
Professional resources to help you accurately calculate, compare, and select the perfect illumination for your swimming pool projects.
Ready to Specify Swimming Pool Light for Your Next Project?
Provide us with your pool dimensions and number of fixtures you want installed and preferred specifications and you would receive a detailed quotation with transformer recommendations in 24 hours.
Get Instant Quote
Swimming Pool Light FAQ
More than 50,000 hours rated life – equates to almost 17 years of service as per IES LM-80 methodology, 8 hours/day use. We typically provide 3-year manufacturer warranty for every fixture installed. In reality, working lifespan is determined by 2 key factors – quality of thermal management and presence of reliable driver. Our epoxy-potted driver boards are capable of dissipating heat far more efficiently and effectively than the air-cavity design which is prevalent in most cheap pool lights, hence our lights continue to produce high lumen counts well into year 8, 10, 12 and beyond. One detail nearly every spec sheet overlooks- the driver board is the point of failure in any pool light, not the LED chips. Epoxypotting our driver in thermally-conductive encapsulant prevents the moisture ingress that kills air-cavity driver within just a few years of installation in a high-moisture environment such as a swimming pool.
Yes. LED pool light with 36W of power output produce nearly identical level of illumination as standard 300W incandescent bulb while drawing just 12W in the process. The savings in energy costs alone over 5 years (8 hours/day and $0.15/kWh), value-adds up to more than US$578 per light that more than covers the premium expenditure of LED market entry. Adding the costs of not having to ever buy another halogen bulb again in the next 17+ years really drives the point home.
Yes. Surface-mounted LED pool lights can simply be hooked directly to the swimming pool wall – no drilling, no draining. Guangqi’s GQ-ST series comes with waterproof screws for concrete, fibreglass, or vinyl lining pools. Do you already have the niche housing from the previous incandescent installed? Our inground LED fixtures fit exactly into those niches for the new world. The installation of most surface-mounted fixtures can be completed in less than 30 minutes per light, making this one of the simplest upgrades you can make to your pool. Even older pools built at the tail-end of the 20th century (in the 1990s and 2000s) with standard J-box niches can accept our LED replacements without any structural modification to the pool shell.
For your average residential size pool, between 800 and 1500 lumens of light per fixture provides sufficient illumination to swim by at night-time. Larger commercial pools and water features are generally lit at between 1500 and 3000 lumens per fixture to meet safety standards. As a general guide, a typical 15×30 ft residential pool will require 2 to 3 fixtures, depending on pool finish type, evenly placed along the long wall of the pool. Third of all, darker pool finishes (for example, blue, black pebble) will absorb a larger percentage of light emitted from the fixture; therefore, an additional fixture might be needed to provide the required mount of illumination.
Yes. Operating voltage is 12V or 24V – way below the 50V wet-environment hazard level limits defined IEC 60364. Safe.
IP68 is the highest ingress protection (IP) rating under IEC 60529. Dust-proof and submersible beyond 1 meter. We test at 1.5 meters for a full 72 hours – well above the minimum standard. Both the fixture body and cable entry gland are rated for this.
RGB pool lights fuse red, green and blue LED chips together to create colored lighting effects – Perfect for color shows and party atmosphere. RGBW adds a dedicated white LED chip which provides cleaner white lighting with (usually) 3000K-6500K CCT, without the slight color blend tint found in RGB white lighting. Choose RGBW if you want both dynamic color-changing effects and consistent white light at night. Choose RGB if most installations are for colorful water shows.
Yes. DMX512 is the media industry standard for synchronized lighting control, trusted by top water feature designers, commercial water parks and theme spots. The Guangqi inground fixtures and the GQ-ST260 both natively support DMX512 protocol; we’re happy to supply building automation system examples to program scene order, scene duration, multi-fixture cascade effects and remote timed shows. For a residential pool with 1-4 fixtures, the included RF remote is all you need.
