Commercial Pool & Water Lighting Solutions — Engineered for Hospitality, Municipal & Architectural Projects
Commercial-grade LED pool lighting delivered around the following six performance demands (see adjacent): Built to IEC 60529 IP68, AISI 316L stainless or equivalent metallurgy, IES Class I-IV illuminance standards. Installed in hotel groups, resort developers, public aquatic facilities on four continents.
Pool & Water Lighting Challenges in Commercial Projects
Commercial pool and water-feature illumination requires a different physical and commercial universe than private spa fixtures–a universe commercial-grade brands are rarely designed for.
A hotel swimming pool runs twelve to eighteen hours a day, three-hundred sixty-five days a year. Chlorinated water at 1-3 ppm dissolves any stainless steel below 316 grade in a single season, and natatorium humidity levels above 60 percent drive condensation ahead of the lens of under-specified fixtures in under 18 months. When a lens seal fails, the typical cascade is: moisture behind the gasket trigger short GFCI trip a whole pool down until a diver, a scissor lift, or a drained basin can replace the unit. Four field reports on r/pools over the last year and a half document this exact pattern on residential LED fixtures re-purposed in commercial circumstances.
What commercial projects actually need
Continual submersion sealing
IP68 per IEC 60529 with redundant O-ring architecture, not IP65/IP66 “water-resistant” ratings.
Chloride-grade metallurgy
AISI 316L stainless (molybdenum-alloyed) for housings, bezels, and fasteners; not 304, not plated steel, not die-cast zinc.
Control-protocol transparency
DXX512, DALI, 0-10V, or BACnet bridges for integration with hotel building automation systems (BMS) and fountain show controllers.
Specifiable illuminance
The capacity to meet IES Class I (75 fc for professional/televised) through Class IV (30 fc recreational) with photometric data attached, not a generic term like “bright.”
Certification paper trail
CE, RoHS, IP68, IK10 with guaranteed certificate numbers the architect, electrical engineer, and procurement can include in the RFP packet.
Commercial MOQ Economics
Pricing suitable for 50- to 500-fixture hotel chains, resort makeovers, and aquatic-center new builds, no single unit replacements for private spas.
GQLamp Pool & Water Lighting Product Lines — Three Specialized Ranges
Below each of the three water-feature forms mapped to the three water-feature contexts, each one is designed for the sealing and metallurgy challenges outlined above, and each one provides a published spec sheet with photometric data (candela distribution, beam angle, CRI, R9) rather than a promotional story.

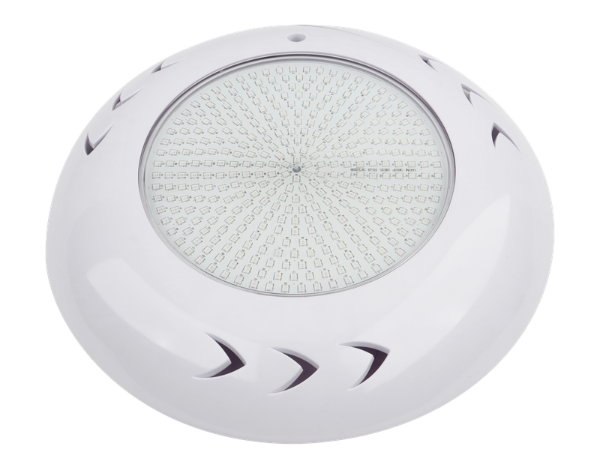

Swimming Pool Light
PAR56 and niche mount LED fixtures inground pool light and pool light fixtures formats for hotel, resort, and competition pools. Retrofit-compatible with Pentair, Hayward and Jandy niches.
- Power: 18W / 25W / 35W (selectable lumens 1,800-3,800 lm)
- Voltage: 12V AC or 120V AC variants
- Color: Cool White 6500K, Warm White 3000K, RGB+W
- Housing: AISI 316L stainless bezel, PC + tempered-glass front lens
- Protection: IP68 continuous submersion, IK10 impact rated
- Wiring: Cord lengths 15m / 30m / 45m
- Guarantee: 5-year commercial warranty

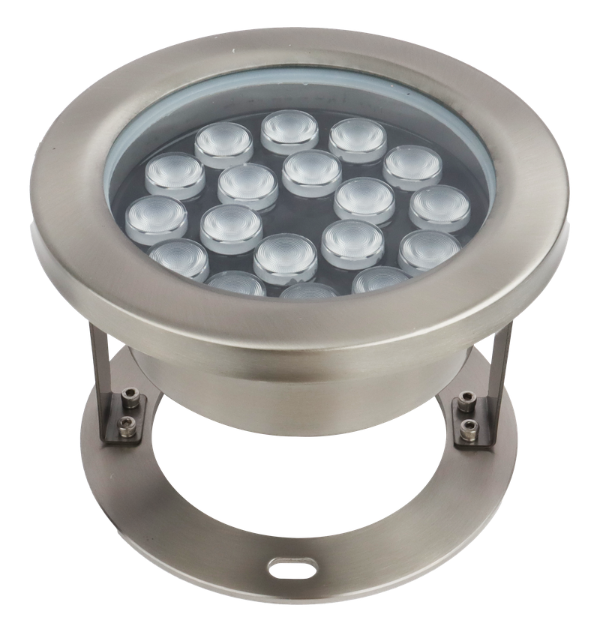

LED Underwater Light
Underwater lighting – surface, flush, and wall-mount submersible fixtures for pond, lagoon, waterfall, and saltwater venues. Crosses over into marine lighting for floating docks, coastal features. Tested in chlorinated, brackish water.
- Power: 6W / 12W / 24W / 36W / 54W / 80W (dimmable via 0-10 V or DMX)
- Voltage: 12V / 24V DC (low-voltage safer installation)
- Color: single color (2700K-10,000K) or RGB / RGBW / RGBCW, with color changing profiles
- Housing: AISI 316L with molybdenum chloride resistance
- Beam options: 15 spot 30 medium 60 wide 120 flood
- Control: DMX512 control-compatible variants for architectural shows
- Cord: IP68 direct-burial rated, 5m–30m standard
Fountain Light
Fountain lighting – musical-fountain and architectural water-feature LEDs with DMX512 synchronization for shows, plazas, and hospitality landscapes.
- Power: 9W / 18W / 24W / 36W
- LED Engine: RGBW LED with individual pixel addressing (DMX)
- Voltage: 24V DC / 36V DC
- Operation: Full submersion IP68 operation, continuous duty
- Protocols: DMX512 / DALI / RDM control protocols
- Integration: bridges to 0–10V and BACnet for hotel BMS
- Application: Used in musical-fountain shows and architectural plazas
Engineering Details That Decide Service Life
Two internal design choices separate GQLamp fixtures from residential-grade LEDs sold into commercial jobs:
Dual O-ring lens seal architecture.
Every lens-to-housing joint carries two independent O-rings (silicone + Viton), each seated in a machined groove rather than glued. If the primary ring degrades under UV or chlorine vapor, the secondary ring continues to hold IP68. This is the same redundancy logic IEC 60529 Annex B permits for sustained-submersion testing.
Grooved aluminum heat-sink rear casting.
Underwater water cools LED junctions efficiently, but commercial pools are sometimes drained for maintenance or winterization – and residential LEDs that depend entirely on water-contact cooling burn out the moment they run dry. GQLamp fixtures carry a passive aluminum heat sink rated for 15 minutes of dry operation, which covers the typical drain-test window described by pool service crews. One Reddit discussion around the J&J VU-retro fixture noted “new groove cooling technology” as a specific reason for choosing it – grooved heat sinks are a visible differentiator because installers can feel them during replacement.
“We routed every GQLamp underwater fixture through a 72-hour pressure-cycle test in chlorinated water at three times the rated depth before shipping. After reading field reports where pool owners described moisture inside name-brand lens assemblies within 18 months, we refused to ship anything less than IP68 with a redundant second O-ring on every port. The cost difference per unit is single-digit dollars. The warranty-claim difference is measured in trips, divers, and shut pools.”
Project-Grade vs Residential-Grade — A Performance Comparison
The table below compares specifications that actually drive long-term cost on a commercial project. No brand names – the reference column represents the typical residential-grade LED pool light sold through pool-service channels.
| Specification | GQLamp Project-Grade | Residential-Grade LED (reference) |
|---|---|---|
| Ingress protection | IP68 · IEC 60529 Annex B 30-day submersion tested | IP65 / IP66 typical |
| Housing / bezel | AISI 316L stainless (2.5% Mo min) | AISI 304, ABS, or PC plastic |
| Lens seal | Dual O-ring (silicone + Viton), machined groove | Single ring, often adhesive-bonded |
| Rated LED life (L70) | 50,000 hours | 20,000–30,000 hours |
| Dry-run tolerance | 15 minutes (passive aluminum heat sink) | Submerged operation required |
| Chloride / salt-water certification | Validated in 3 ppm chlorine + 3.5% NaCl solution | Not published |
| Control protocol | DMX512 / DALI / 0–10V / BACnet bridge | Limited RGB remote or single-channel |
| Commercial warranty | 5 years | 1–3 years |
| OEM / ODM | Available (logo, CCT, beam, PSU, DMX profile) | Retail only |
| MOQ — Swimming Pool / Underwater / Fountain | 100 / 50 / 50 pcs | Retail single-unit |
Total Cost of Ownership — 5 years, 80-fixture hotel pool
A clear way to read the premium per unit is to look at 5-year total cost. A commercial-scale installation swaps fixture count, lamp-replacement labor, and energy draw in the same direction.
GOLD ROI Card — 5-Year TCO (80-fixture commercial pool)
Comparison against equivalent-output halogen pool lighting. Assumes 12 hours/day operation, commercial electricity rates at USD 0.12/kWh, and published manufacturer lifetimes.
~85%
Energy cost reduction LED vs halogen
5–12×
Lifespan of LED over halogen bulbs
0
Lamp replacements in year 1–5 (rated L70 50,000 h)
~5×
Lower operating cost over halogen
Project Deliveries — Global Hotels, Resorts & Public Spaces
Below is a typical sample of GQLamp pool and water lighting specs. Each project included a complete case study with photometric drawings, SKU list and client contact information, NDA-required.
5-Star Resort — 1,100 m² Lagoon Pool, Middle East
Resort · 68 × 35W RGBW · 24 × 12W underwater accent · DMX512 show control
Upgrade of 120 halogen fixtures to layered LED system: 68 PAR56-format niche lights for primary illumination, along with 24 low-voltage underwater accents along the beach-entry shelf. The system was commissioned with a DMX-driven evening show synchronized to ambient music.
Annual energy draw reduced ~80% · Zero warranty claims in 18 months

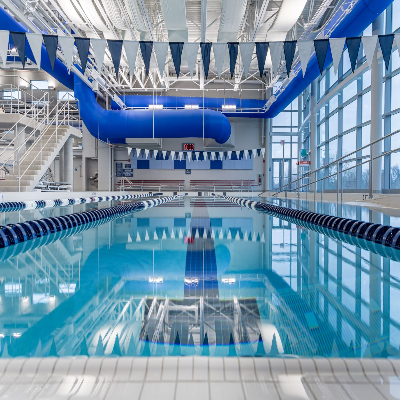

Municipal Aquatic Center — Olympic-Size Competition Pool, Europe
Municipal · 42 × 54W 5700K · IES Class I illuminance · R9 >80
New-build 50m competition pool for regional swimming federation. Photometric design engineered to 1,100 lux average at water surface with uniformity ratio 1.6:1 for televised events. Specification of 5700K / CRI >80 / R9 >80 as specified in IES suggested practice, required for broadcast.
Met IES Class I spec on first commissioning · Passed federation broadcast-quality audit

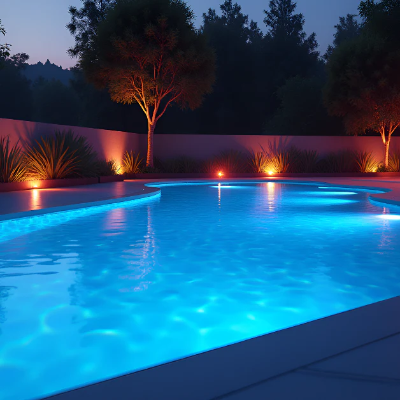

Hotel Chain Rollout — 24 Properties, Southeast Asia
Hospitality · 480 fixtures total · Mixed pool + waterfall + pond
Standardization program across 24 hotel properties, replacing mixed-brand legacy lights and past gazillion wattage par cans with a 630-light GQLamp catalog: swimming pool lights for primary basins, underwater accents for decorative ponds and states, and fountain lights for porte-cochre water features.
Procurement MOQ structured for phased rollout · Single SKU catalog across chain

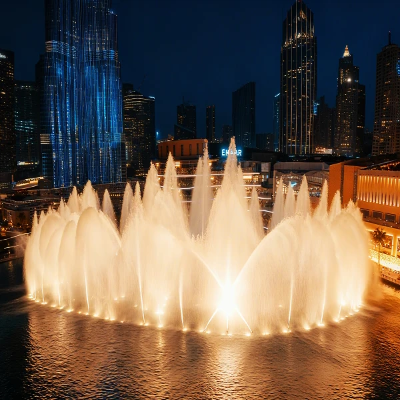

Landmark Waterfront — Musical Fountain, East Asia
Public / Landmark · 312 DMX-addressable fountain lights · 45m diameter basin
Civic musical-fountain installation including 312 individually addressable RGBW fountain lights choreographed in time with soundtrack. DMX512 backbone connected to a show controller operating water pump timers, lights, and audio along a single timeline- architecture employed by the best-known civic monuments in North America.
Dual-redundant DMX universe for show reliability

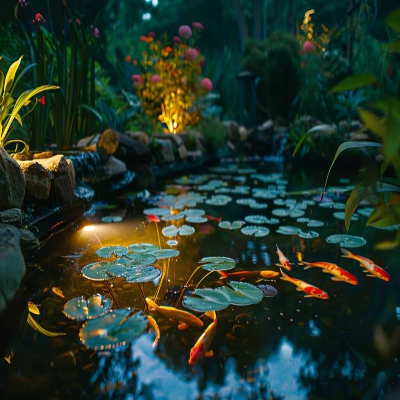

Boutique Resort Chain — Underwater Pond Lighting, North America
Hospitality · 96 × 12W low-voltage submersibles · RGBW + WiFi bridge
Landscape-grade underwater lights for three koi-and-lily pond installs. 12V low-voltage wiring per NEC Article 680 pond safety requirements, with a DMX to WiFi bridge for property manager scheduling through the landscape BMS.
Average operating cost ~USD 28/month per pond · 24-month installation anniversary with no failures
Certifications & Compliance — Project-Ready Trust Stack
All GQLamp pool and water fixtures ships with traceable cert numbers for the following certifications – Your architect and engineer can reference these in the RFP or submittal documentation
CE
EU Conformity
RoHS
EU 2015/863
IP68
IEC 60529
IP66
Deck / Accent
IK10
Impact 20J
REACH
SVHC Compliance
How to interpret our IP68 rating.
IEC 60529 certifies IP68 as full protection from ingress of dust (first digit 6) combined with ingress protection against submersion at depth and duration specified by the manufacturer (second digit 8). GQLamp publishes the exact test parameters- 3 meters of depth, 30 days of immersion, submersed continuously in chlorinated water (3ppm) – rather than leaving IP68 as a marketing buzzword. Source documents available on request.
What “waterproof” actually means on our fixtures.
Consumer-grade lighting used “waterproof” as a marketing catchphrase; the IEC 60529 code is the engineering statement. For our catalog, each SKU receives a rated and labeled against its own IP number pair, and the driver, junction box, and transformer components all have an IP rating of their own. Basic electrical code for your project requires the electrician to interpret those digits- our diagrams provide them.
Our field-verified Chloride levels:
All SS bezels are pre-tested for 72 hours in chlorinated pool water (3ppm) cycled 0-40°C before package – IEC 60068-2-11 salt-spray test not sufficient where molybdenum content of 2.0-2.5% in AISI 316L registers in field contamination tests for marine-grade fastners ASTM A276 Table 8 specifications.
Procurement Guide — MOQ·Lead Time·OEM/ODM
Procurement is about parameters MO,lead time,terms,logistics,degree of customization. Here GQLamp standard commercial terms: negotiable (per client project needs) with account engineer.
Minimum Order Quantities
| Product Line | Standard MOQ | Mixed-SKU MOQ | Sample Policy |
|---|---|---|---|
| Swimming Pool Light | 100 pcs | 50 pcs minimum, 3 SKUs | 1–2 units free sample (freight collect) |
| LED Underwater Light | 50 pcs | 30 pcs minimum, 2 SKUs | 1–2 units free sample (freight collect) |
| Fountain Light | 50 pcs | 30 pcs minimum, 2 SKUs | 1 unit free sample (freight collect) |
Lead Time
Commercial stock packages (Cool White / Warm White / standard RGB): 15-25 working days after PO approval
Commercial special packages (special CCT,beam angle,cable length,DMX profile): 35-45 working days
OEM private-label production (logo,packaging,SKU#ing,manual): 45-60 working days
Logistics & Packaging
Standard export package 5-ply corrugated packaging with Foam Disks,Desiccant,IEC B/L Marking.Capacity per 40′ HQ container: 4,800 swimming pool fixtures or 6,400 underwater fixtures FOB,EXW and DDP Incoterms 2020 quote on demand.
Payment Terms
T/T 30/70 or L/C at sight. Western Union supported on orders below USD3,000.
OEM & ODM Capability
- Private-label logo laser-etched onto bezel
- Custom CCT (2700K–10,000K) and tunable-white options
- Custom beam angles (15°, 30°, 45°, 60°, 90°, 120°)
- Customer custom RGB / RGBW / RGBCW pixel profiles and DMX starting address pre-programming
- Customer custom driver / PSU(12V AC, 24V DC, 120V AC), regional
- Custom control protocols: DMX512, DALI, RDM, 0–10V, BACnet-bridge modules
- Custom cord length, connector type (Wieland, IP68-threaded, direct-bury)
- B2B coconfigured B2A spec sheets and installation guides for multi-property hotel networks.
Specification Reference — Lumen & Wattage by Commercial Pool Size
This table illustrates the typical commercial pool lighting design; it integrates Washington ISPSC 2021 321.2.2 rule base of 30 foot-candles (323 lux) at pool water surface, the IES Illuminance Class for aquatic facilities, and GQLamp fixture efficiency data (~140 lumens per watt at premium tier). Use it as a first-cut worksheet only — a full photometric study still belongs in your lighting consultant’s hands.
IES Illuminance Classes — What Class Does Your Pool Target?
| IES Class | Use Case | Pool Surface Illuminance | Uniformity (max/min) | CCT · CRI |
|---|---|---|---|---|
| Class I — Professional | Olympic / televised competition | 75 fc / 807 lux | 1.7 : 1 | 5700K · CRI >80, R9 >80 |
| Class II — Collegiate | Universities, training centers | 50 fc / 538 lux | 2.5 : 1 | 5000K · CRI >80 |
| Class III — Intermediate | Municipal community pools | 30 fc / 323 lux | 3 : 1 | 4000K · CRI >70 |
| Class IV — Recreational | Hotel / resort leisure pools | 30 fc / 323 lux | 4 : 1 | 4000K · CRI >70 |
GQLamp Pool Lumen Spec Chart — Fixture Count by Pool Size
Total assumptions: 30 fc / 323 lux at water surface for leisure water between 70-300 fc / 750-3,300 lux for competition water (LED efficacy 140 lm/W). Fixture uses GQLamp Swimming Pool Light 35W PAR56 in-ground niche-mount (nominal 4,900 lm @ 6500K, 120 flood). Variations based on ceiling height, deck geometry, lamp depreciation- 10-15% lumen compensation added from initial spec.
| Pool Size | Surface Area | Target Class | Total Lumens Needed | GQLamp Fixtures | Total System Watts |
|---|---|---|---|---|---|
| Small hotel leisure pool (10 × 4 m) | 40 m² | Class IV | ~12,900 lm | 3 × 35W PAR56 | ~105 W |
| Medium hotel pool (15 × 7 m) | 105 m² | Class IV | ~33,900 lm | 8 × 35W PAR56 | ~280 W |
| Resort lagoon pool (25 × 12 m) | 300 m² | Class IV | ~96,900 lm | 22 × 35W PAR56 | ~770 W |
| Municipal community pool (25 × 15 m) | 375 m² | Class III | ~121,100 lm | 28 × 35W PAR56 | ~980 W |
| Semi-Olympic (25m × 15m) | 375 m² | Class II | ~201,800 lm | 46 × 35W PAR56 | ~1,610 W |
| Olympic competition (50 × 25 m) | 1,250 m² | Class I (televised) | ~1,008,800 lm | 230 × 35W PAR56 OR 42 × 54W high-output | ~8,050 W |
For “nature-packaged” water features (fountains, waterfalls, pools), the photoere shown at 15-40 lumens per liter of water-pumped volume for fountains and 100-200lm/m for still water bodies- is for contrast, not swimmer safety.Your fountain designer should provide these photonics calculations. Our account engineers can provide IES files for each fixture for AGi32 or DIALux.
What this chart does not do
The final layout depends the final budget and preferences. This is a starting point for sizing; it is not a photometrically optimized design and it is not a verification of the photometric design. Factors such as the polygon deck shape/sizes, beach-entry shelves, diving platforms, glare control from specular water surfaces, and minimums for emergency-lighting all impact the final layout. According to the ORFA PV-Safe guideline and IES RP-6 standards, a min of 10 lux (1о foot-candles) of emergency-lighting should be placed along all egresses for a minimum of 30 minutes in the event of power failure – overlay on top of the arrangement of our basic lighting plan.
Guangqi Lighting Factory Tour — Precision Pool & Water LED Manufacturing
Engineering Tools — Calculators & Selectors
Streamline your commercial pool lighting design with our professional calculation tools. Select your exact tool below to proceed.
Pool Lumen Calculator
Calculate the exact lumen output and fixture count required for your pool based on dimensions and target illuminance levels.
Launch Tool →
TCO Calculator
Compare the 5-year Total Cost of Ownership between standard halogen systems and GQLamp project-grade LED solutions.
Launch Tool →
IES Pool Lighting Class Selector
Identify the correct IES Illuminance Class and specific photometric requirements for your commercial aquatic facility.
Launch Tool →
Ready to Spec Pool & Water Lighting for Your Project?
Provide a drawing of the pool dimensions, the target IES class, and the number of fixtures. Our project engineer will provide a simplified sizing report in 2 business days and a detailed photometric simulation in 5 business days.
Request Project QuoteFrequently Asked Questions — B2B Project-Focused
For fixtures installed below the water surface, IEC 60529 IP68 is the working minimum — that is, full dust protection plus continuous submersion at the manufacturer-specified depth and duration. IP65 and IP66 ratings are acceptable for deck-mount and overhead natatorium luminaires where moisture exposure is humidity-driven rather than submersion-driven, but both are under-specified for underwater fixtures. A pool operator who accepts IP65 on an underwater fixture is effectively accepting a 12–18 month service-life window rather than the 5-year one they paid for. GQLamp publishes the specific IP68 test parameters (depth, duration, water chemistry) per SKU rather than leaving the rating as a catalog number.
At IES Class IV (hotel leisure, 30 fc / 323 lux), a 25 × 12 m resort lagoon pool (300 m²) needs approximately 97,000 lumens total, typically delivered by 22 × 35W PAR56 fixtures for roughly 770 W of system power. A 50 × 25 m Olympic televised pool at Class I (75 fc / 807 lux with CRI >80 / R9 >80) needs around 1,009,000 lumens — roughly 230 fixtures at 35W or 42 of our higher-output 54W units, totaling about 8 kW. The Specification Reference table above has the full tier-by-tier breakdown. For anything past quick sizing, a photometric simulation in AGi32 or DIALux is worth the lighting-consultant fee.
Yes, if the housing is AISI 316L stainless steel and the cable entry is properly sealed. The molybdenum content in 316L (2.0–2.5%) resists chloride-induced pitting corrosion, which is the mechanism that destroys 304 and lower-grade stainless in brackish or salt-water environments. GQLamp validates every batch with a 72-hour soak in 3% NaCl solution cycled between 0 and 40 °C before packaging. Cable glands use IP68-rated polyamide compression fittings with Viton gaskets, not silicone adhesive. Residential-grade underwater LEDs often substitute 304 SS or plated brass — both fail within a single salt-water season.
Swimming Pool Lights carry a 100-piece MOQ on a single SKU, 50 pieces on a mixed-SKU order across 3+ SKUs. LED Underwater and Fountain Lights are 50 and 30 pieces respectively. Stock configurations ship in 15–25 working days; custom CCT / beam / cord-length variants ship in 35–45 days; OEM private-label runs with logo etching, custom packaging, and co-branded spec sheets take 45–60 days. Multi-property hotel rollouts are usually structured as a phased PO schedule where properties draw down against a single blanket order.
Yes. Every RGBW fixture in the Fountain Light and LED Underwater Light ranges is DMX512-addressable out of the box, which is the dominant protocol in commercial architectural and musical-fountain installations — the same one used at major civic fountains such as the Grand Haven Musical Fountain. For hotel BMS integration we supply DMX-to-DALI and DMX-to-0–10V bridges for basic scene recall, and DMX-to-BACnet gateway modules for full scheduling and alarm integration with systems like Honeywell, Siemens Desigo, or Johnson Controls Metasys. The integration documentation is supplied as part of the OEM/ODM spec package on request.
Yes. Our account engineers provide three levels of pre-order support: a quick-sizing report based on pool dimensions and target IES class (returned within 48 hours); a full photometric simulation in AGi32 or DIALux with isolines, uniformity ratios, and glare metrics (returned within 5 working days for most commercial pools); and on-site commissioning support for projects above 200 fixtures. The quick-sizing report and the photometric simulation are both provided free during the quotation phase. On-site commissioning is quoted separately based on project scope and travel.
GQLamp project-grade LED fixtures are rated L70 at 50,000 hours — meaning the LED modules deliver at least 70% of initial lumen output after 50,000 hours of operation. At 12 hours/day, that is roughly 11.4 years before formal end-of-life. The 5-year commercial warranty covers LED module failure, driver failure, and seal failure (water ingress) under normal commercial operating conditions, including chlorinated and salt-water environments within our published chemistry ranges. It does not cover impact damage or fixtures operated outside their published voltage and temperature tolerances. Warranty claim turnaround is 10–15 working days, including dispatch of a replacement unit — we do not require the failed unit back before the replacement ships.
