Commercial Street Lights

Commercial Street Lights — LED Fixtures for Roads, Highways & Municipalities

Guangqi Lighting is a commercial LED street light provider delivering fixtures intended to operate for 50,000+ hours. Cobra head, post top, shoebox and solar fixtures – IP65/IP66 certified.

CCT Selectable: 3000–5000K
TCO Reduction vs HPS: 60%
Request Project Quote →
Commercial LED Fixture 1

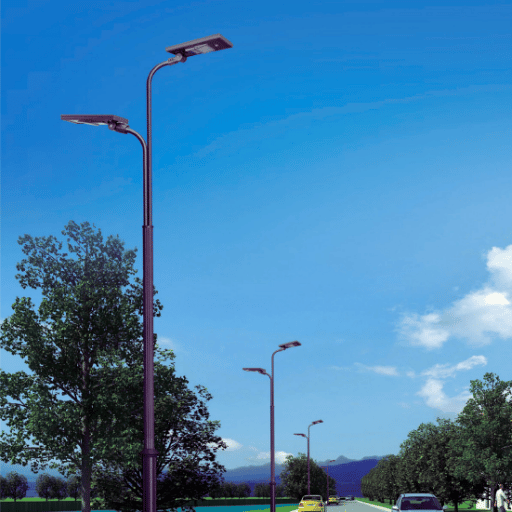

Commercial LED Fixture 2

50–300W

Wattage Range

120–170 lm/W

System Efficacy

100,000+ hr

L70 Rated Lifespan

IP65/IP66

Ingress Protection

Why Upgrading to LED Street Lights Saves Your Budget and Improves Safety

Municipalities and commercial property managers still operating high-pressure sodium or metal halide street lights face escalating maintenance costs, poor color rendering, and energy bills that consume 50–70% more power than necessary. According to the Federal Highway Administration (FHWA), the nighttime traffic fatality rate runs three times higher than daytime — with only 25% of vehicle miles traveled occurring after dark. Proper roadway lighting reduces nighttime pedestrian injury crashes at intersections by up to 42%.

LED street lights address both the safety and financial equation.

A single 70W LED cobra head fixture replaces a 150W HPS unit — delivering equivalent roadway illumination at less than half the energy draw, with an L70 rated lifespan exceeding 100,000 hours versus 24,000 hours for HPS. The U.S. Department of Energy confirms that LED roadway lighting achieves target light levels with less than half the total generated light compared to legacy HID technologies — thanks to superior optical control that puts lumens on the pavement, not into the sky.

Nighttime fatality rate vs daytime (FHWA)
42% Crash reduction with adequate intersection lighting
50–70% Energy savings LED vs HPS
3–5 yr Typical LED retrofit payback period

The financial case extends beyond energy.

LED fixtures eliminate relamping cycles entirely. HPS lamps require replacement every 5–6 years, plus ballast changes and bucket truck dispatches at $100+ per service call. Over a 10-year period, a single LED fixture costs roughly $518 in total ownership compared to $1,298 for an equivalent HPS setup — a 60% reduction in total cost of ownership.

With a performance case in hand, our next step is helping you select the right fixture for your roadway application.

Guangqi Street Light Product Line — Cobra Head, Post Top & Solar Fixtures

Guangqi Lighting offers four lineup categories of Commercial Street Lights, engineered for target road classifications. All four ship with field adjustable CCT drivers (3000K / 4000K / 5000K) – a significant consideration for municipal buyers, often noted as the number one product procurement concern in street / roadway light selection.

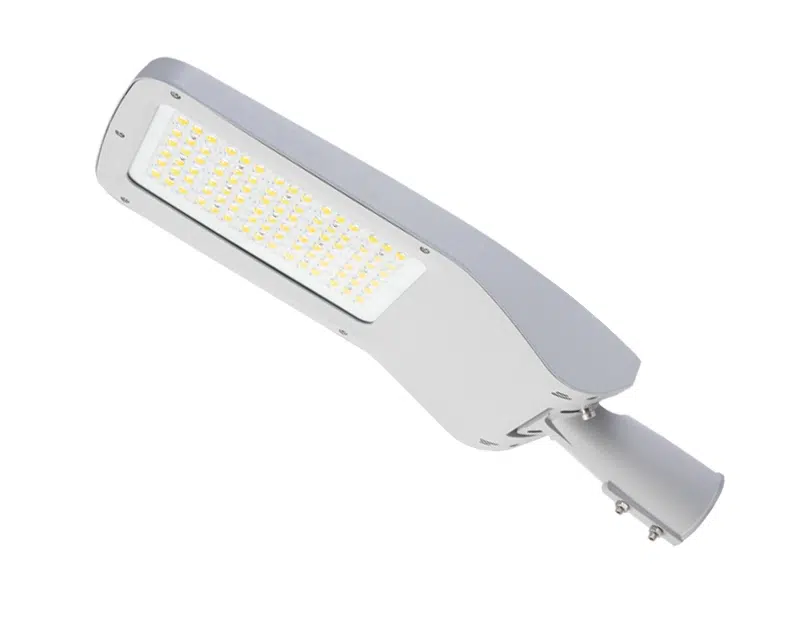

Cobra Head Roadway Fixtures

Cobra Head / Roadway Fixtures

Wattage50W – 300W
Lumens6,500 – 45,000 lm
Efficacy & Optics130–160 lm/W | Type II, III, IV
CCT3000K / 4000K / 5000K
SpecsIP66, IK08 impact rated
FeatureDusk-to-dawn photocell included
Best for: Highways, arterial roads, high-speed corridors
Post Top Decorative Fixtures

Post Top / Decorative Fixtures

Wattage30W – 120W
Lumens3,900 – 15,600 lm
Efficacy & Optics125–140 lm/W | Type V symmetric
CCT3000K / 4000K
SpecsIP65, cast aluminum housing
FeatureMultiple finial styles available
Best for: Municipal streets, residential communities, campuses

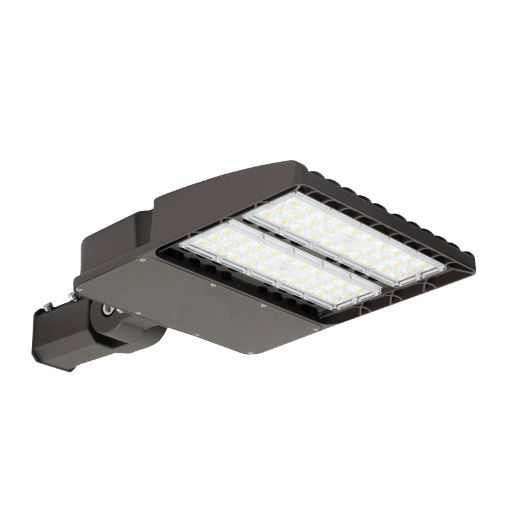

Shoebox Area Lights

Shoebox / Area Lights

Wattage80W – 300W
Lumens10,400 – 45,000 lm
Efficacy & Optics130–155 lm/W | Type III, V wide
CCT4000K / 5000K
SpecsIP65, slipfitter or arm mount
FeatureDLC Premium listed
Best for: Parking lots, commercial properties, industrial yards

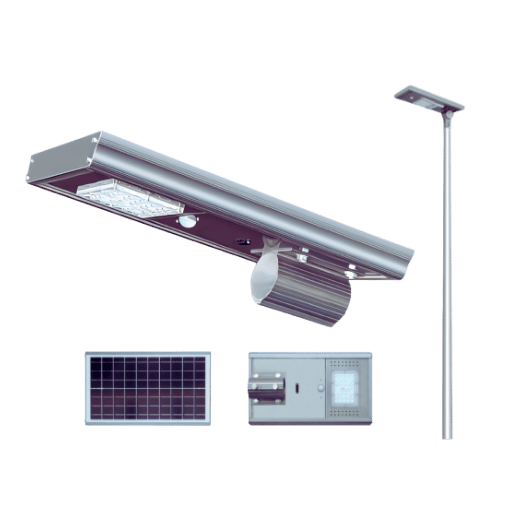

Solar Street Lights

Solar Street Lights

LED & Panel Power30W–120W LED | 80W–250W monocrystalline
BatteryLiFePO4, 3–5 night autonomy
CCT4000K / 5000K
SpecsIP65, all-in-one or split design
FeatureMotion sensor + dimming standard
FeatureZero grid connection required
Best for: Off-grid roads, rural areas, eco-projects, new developments

Fixture Selection Decision Matrix

Application Recommended Fixture Typical Wattage Mounting Height Recommended CCT Optic Type
Highway / Freeway Cobra Head 150–300W 30–40 ft 4000K Type II / III
Arterial Road Cobra Head 100–200W 25–35 ft 4000K Type II / III
Residential Street Post Top / Decorative 30–80W 12–18 ft 3000K Type V
Parking Lot Shoebox 150–300W 20–30 ft 4000K–5000K Type III / V
Pedestrian Walkway Post Top 30–60W 10–14 ft 3000K Type V
Off-Grid / Rural Road Solar 30–120W 18–25 ft 4000K Type II / III

Commercial Street Lights — LED Fixtures for Roads, Highways & Municipalities

Every Guangqi commercial street light fixture meets or exceeds the illumination targets defined in ANSI/IES RP-8-22. Our LED fixtures deliver superior optical control that puts lumens on the pavement, outperforming legacy HPS and metal halide systems.

Performance Upgrades (LED vs HPS)

Parameter LED (Guangqi) HPS Metal Halide
System Efficacy120–170 lm/W80–110 lm/W70–95 lm/W
L70 Rated Lifespan100,000+ hr~24,000 hr~15,000 hr
Color Rendering (CRI)70–90+20–3065–80
CCT Options3000–5000K2200K fixed3000–4200K
Warm-Up TimeInstant5–10 min5–15 min
Dimming0-10V, DALI, PWMNot possibleLimited
Uplight Waste< 1%15–25%15–25%
Annual Energy (150W)307 kWh657 kWh876 kWh
Maintenance (10 yr)0 relamps2–3 relamps3–4 relamps

IES RP-8 Illumination Standards by Road Classification

Road Classification Min. Illuminance Max. Illuminance Uniformity Ratio
Freeway / Highway0.6 fc (6 lux)3:1 avg/min
Major / Arterial1.2 fc (12 lux)3.4 fc3:1
Collector Road0.8 fc (8 lux)2.2 fc4:1
Local / Residential0.4 fc (4 lux)1.0 fc6:1
Parking Lot0.5 fc (5 lux)5.0 fc4:1
Pedestrian Crossing2.0 fc (20 lux)4:1

50–300W

Wattage Range

120–170 lm/W

System Efficacy

60%

TCO Reduction

0

10yr Relamps

📐 Engineering Note

Per ANSI C136, minimum mounting height is 25 ft (7.6 m) for major roads and 20 ft (6.1 m) for local roads. Pole spacing generally ranges from 3-4 times the mounting height with Type II optics. Guangqi’s engineering team provides complimentary DIALux-layouts for luminance level confirmation in advance of fixture order.

Municipal Lighting Projects — Energy Savings & Real-World Results

Cities and municipalities worldwide are converting legacy street lighting to LED at an accelerating pace. The financial case is straightforward: LED street lights cut energy consumption by 50–70% and eliminate maintenance costs that typically run $50–100 per fixture annually for HPS relamping and ballast replacement.

TCO Advantage — LED vs HPS Street Light (Per Fixture, 10-Year Projection)

Cost Component 70W LED 150W HPS
Fixture Purchase $150 $80
Energy ($0.12/kWh × 4,380 hr/yr) $368 $788
Relamping (parts + labor) $0 $280
Ballast/Driver Replacement $0 $150
Total 10-Year Cost $518 $1,298

Assumes an average commercial utility rate of $0.12/kWh based on 4,380 operating hours/year. Actual savings will depend upon utility rate structure and LED fixture selection. Contact Guangqi for a TCO proposal based on your project specifications.

Application Coverage

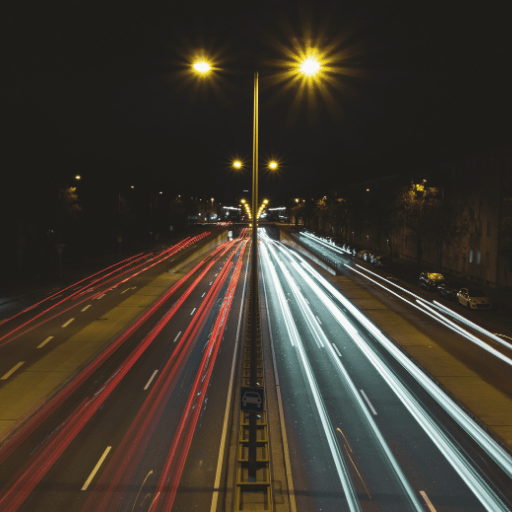

Highways and Freeways Lighting Application
Highways & Freeways
Municipal Roads and Streetscapes LED Lights
Municipal Roads & Streetscapes

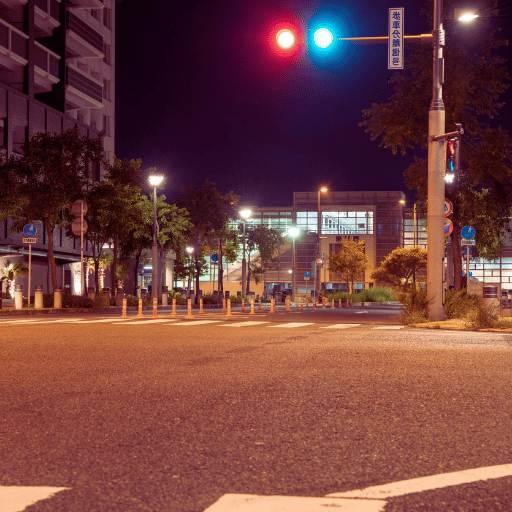

Parking Lots and Commercial Areas Lighting
Parking Lots & Commercial Areas

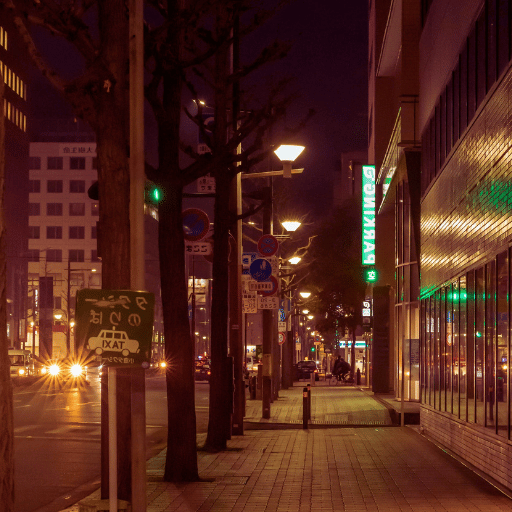

Pedestrian Walkways and Parks Fixtures
Pedestrian Walkways & Parks

Compliance & Certifications — Quality Assurance for Every Project

All Guangqi Commercial Street Lights go through independent testing and certification prior to shipment. Every fixture undergoes independent testing at an ISO-certified manufacturing facility, covering photometric validation, IP-rating and surge protection confirmation.

CE
RoHS
IP65 / IP66
IK08
DLC Listed
ISO 9001
LM-80
TM-21

IES & Dark Sky Standards

All fixtures comply with IES testing standards including LM-79 (luminaire photometric testing), LM-80 (LED lumen maintenance), and TM-21 (lumen depreciation projection). For projects requiring Dark Sky compliance, we offer fully shielded fixtures with zero uplight emission, meeting DarkSky International guidelines for responsible outdoor lighting.

Smart Lighting Readiness

Smart lighting readiness is built into every fixture. 0-10V dimming comes standard; DALI and NEMA 7-pin receptacles are available for networked control systems that enable scheduled dimming, adaptive lighting, and remote monitoring — reducing energy consumption by an additional 20–40% beyond the LED conversion baseline.

Project Planning & Engineering Tools

Interactive resources to help specify and optimize your commercial street lighting projects.

LED Street Light Savings Calculator

Estimate your annual energy and maintenance savings by switching from HPS to LED street lights.

Open Calculator →

CCT Color Temperature Selection Guide

Select the right color temperature for your street lighting project. Click each option to see recommendations.

View Selection Guide →

FAQ — Commercial Street Light Buyer’s Guide

How much do commercial LED street lights cost?

View Answer

Commercial LED street light pricing depends on fixture type, wattage, optic configuration, and order quantity. Cobra head fixtures for roadway use typically range from $80 to $400 per unit; decorative post top packages with poles run higher. The real measure is total cost of ownership: LED fixtures typically deliver 3–5 year payback through energy savings of 50–70% and elimination of relamping labor. Contact Guangqi Lighting for volume pricing based on your project specifications.

What is the difference between LED and HPS street lights?

View Answer

LED street lights deliver 120–170 lm/W system efficacy versus 80–110 lm/W for HPS, with an L70 lifespan exceeding 100,000 hours compared to roughly 24,000 hours for HPS lamps. LED provides a CRI of 70–90+ (accurate color rendering) while HPS produces only CRI 20–30 (monochromatic yellow). LED fixtures dim instantly via 0-10V or DALI controls; HPS cannot be dimmed and requires 5–10 minutes to reach full brightness after startup.

How high should commercial street lights be mounted?

View Answer

Per ANSI/IES RP-8 guidelines, minimum mounting heights are 25 feet (7.6 m) for major roads and 20 feet (6.1 m) for local streets. Decorative post top fixtures in residential and pedestrian areas typically mount at 10–14 feet. Pole spacing generally runs 3–4 times the mounting height for uniform illumination coverage. Guangqi provides complimentary photometric layouts to refine pole placement for your specific road geometry.

What certifications do commercial street lights need?

View Answer

At minimum, commercial street lights should carry CE marking, IP65 or IP66 ingress protection rating, and RoHS compliance. For North American projects, DLC (DesignLights Consortium) listing enables access to utility rebate programs. Photometric performance should be verified through LM-79 testing, with LED lumen maintenance documented per LM-80 and TM-21 standards. Dark Sky compliance requires fully shielded optics with zero uplight emission.

How long do LED street lights last?

View Answer

Quality LED street lights carry an L70 rated lifespan of 100,000+ hours — approximately 22 years at 12 hours of nightly operation. This compares to 5–6 years for HPS lamps and 3–4 years for metal halide. LED fixtures degrade gradually rather than failing abruptly, maintaining consistent light output throughout their service life. Driver quality is equally important: specify drivers rated to 100,000 hours to match LED chip longevity.

Cobra head vs post top vs shoebox — which fixture type should I choose?

View Answer

Fixture selection depends on road classification and application. Cobra head fixtures suit highways and arterial roads — their directional Type II/III optics push light along the roadway. Post top fixtures work for municipal streets, campuses, and residential areas where aesthetics matter alongside illumination. Shoebox fixtures deliver broad, high-output coverage for parking lots and commercial properties. Use the Decision Matrix above to match fixture type, wattage, and CCT to your application.

What does “Dark Sky compliant” mean for street lighting?

View Answer

Dark Sky compliant fixtures direct all light downward with zero uplight emission, reducing light pollution, light trespass into adjacent properties, and ecological disruption. DarkSky International provides third-party certification for qualifying fixtures. Our fully shielded cobra head and shoebox fixtures meet these requirements. For residential areas, combining Dark Sky optics with 3000K CCT further reduces blue light emission — consistent with AMA guidance for community lighting.

Are solar street lights reliable for commercial applications?

View Answer

Modern solar street lights with LiFePO4 batteries and monocrystalline panels deliver 3–5 nights of autonomous operation in most climates. Solar is particularly cost-effective for new developments (no trenching costs), rural roads, and off-grid locations. Performance is site-dependent: regions with strong solar insolation see the best results. Our solar fixtures include built-in motion sensors and dimming schedules that extend battery autonomy by operating at reduced output during low-traffic periods.

Ready to Upgrade Your Street Lighting?

Guangqi Lighting provides free photometric layouts, project-specific TCO reduction estimates, free samples for qualified project cases.
