Facade & Architectural Lighting — LED Solutions for Commercial Projects
Facade & architectural lighting that actually meets spec: si× purpose-built LED product lines, IP66-rated housings, Title 24-ready photometrics, and 5-year warranty from shipment date – not from the day the fi×ture finally got installed.
Request a Project Quote
Why Cookie-Cutter Floodlights Fail Modern Facades
Generic floodlights glare into the night sky, trip Title 24 BUG-rating thresholds at 6,200 lumens, and leave half the wall under-lit while the other half washes out. Architects specifying hospitality, retail, or landmark facades end up with fixtures that technically work but visibly underdeliver – and inspectors flag them on commissioning day.
Facade & architectural lighting is the disciplined alternative: fixtures designed around specific distribution types (narrow-beam grazing, wide-beam washing, asymmetric flood, pixel-level direct view), matched to the wall height, material reflectance, and code constraints you are actually designing for. That is what our six product lines do – and the rest of this page breaks down exactly how.
The chain most projects get wrong:
Pain
Architects report that 62% of commercial facade retrofits over-light the top third of a wall while under-lighting the base – because a single floodlight type was spec’d across mixed wall heights.
Cause
The root issue is beam distribution. A narrow-beam grazer delivers 4.6 footcandles on a 20-ft wall at 1.5-ft setback, but the same fixture at a 5-ft wall over-drives to 9.4 fc with a 6.1:1 max/min ratio – visibly uneven.
Solution
Wall grazing, wall washing, asymmetric flood, spot, linear, and direct-view pixel are six distinct techniques – and each of our six product lines is built for one of them, not retrofitted.
Proof
Our LED wall washer light ships with IES files that let your lighting designer verify illuminance uniformity before the PO, not after installation.
The Guangqi Architectural Lighting Fixtures Family — 6 Product Lines, One System
Six product lines cover the full distribution spectrum. Each card lists the technique it is built for, ingress rating, driver type, LED binning class, and the companion sub-page where spec sheets and IES files live.

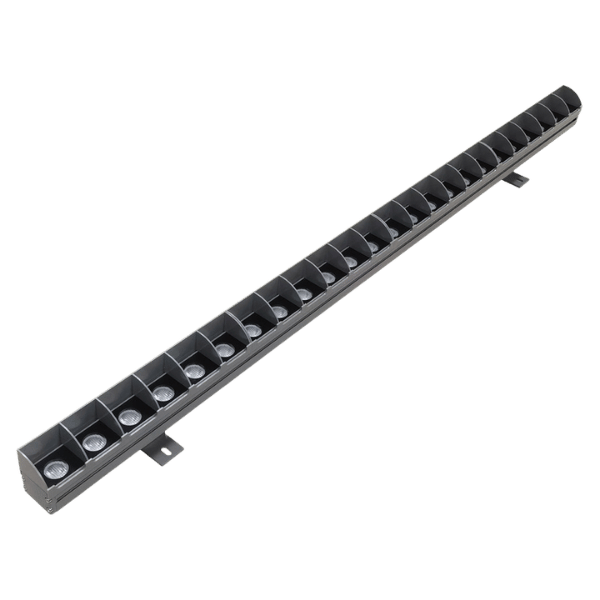

LED Wall Washer Light
- Narrow-beam wall washing · 5-263 ft walls
- IP66 IEC 60529 12W / 24W / 36W / 48W / 72W / 96W / 108W / 144W / 250W options
- Constant-current driver · 0-10V / DMX / SPI / DALI
- LED binning 3-step MacAdam CRI 80+ / 90+ option
- Ta rating -30°C to +50°C
Outdoor Wall Lights
- Entry accent · building signage
- IP66 3W 6W / 9W / 12W / 18W / 24W / 36W
- Up/down dual distribution options
- Die-cast aluminum housing · Tempered glass
- CCT 1700K-6000K / RGB / RGBW fixed or tunable

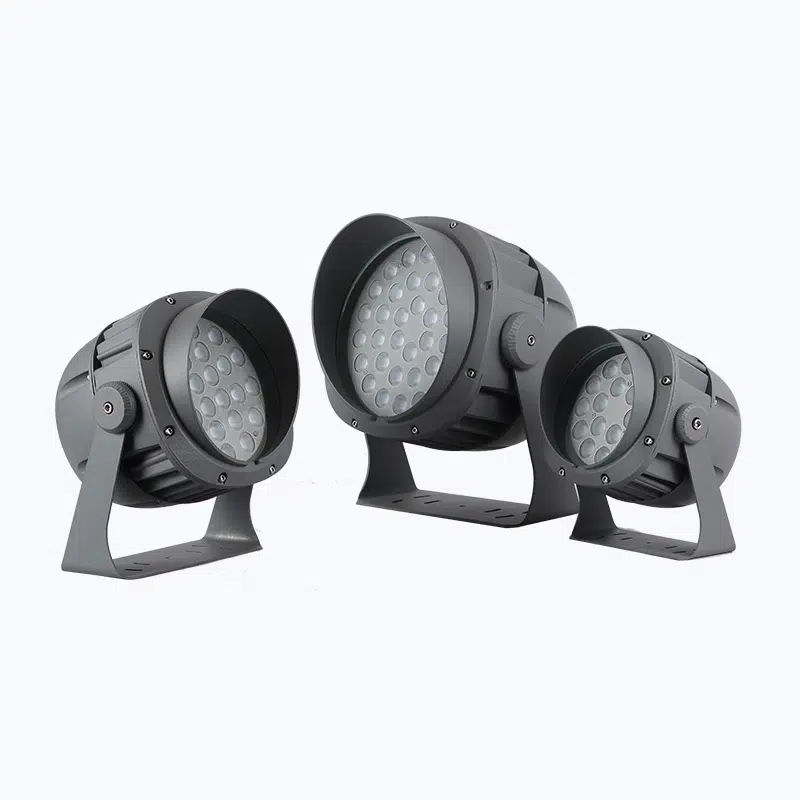

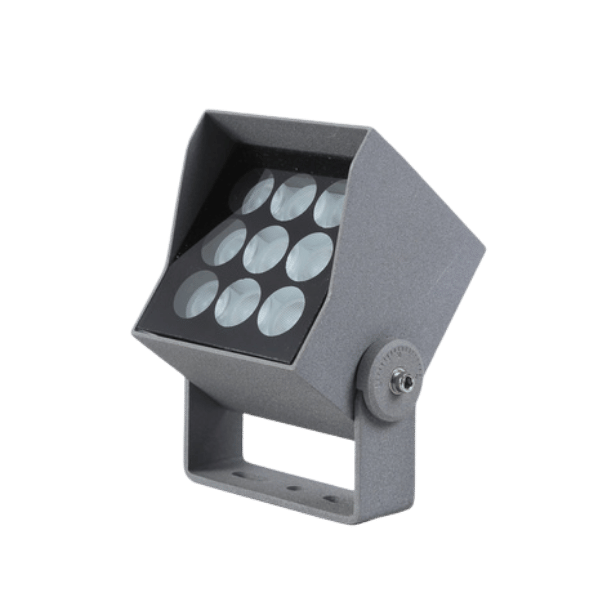

Outdoor Spot Light
- Narrow-beam accent · architectural details
- IP66 12-300 W
- Beam angles 5° / 8° / 10° / 15° / 25° / 40° / 60°
- Adjustable ±8° tilt mounting base
- Powder-coated Die-casting aluminum body, 5 color options
LED Pixel Lights
- RGB / RGBW dynamic · media facade
- IP65 individual addressable · DMX512 / SPI
- Pitch 50 / 75 / 100 / 150 mm
- 16.7M color, frame rate 30/60 fps
- Daisy-chain up to 512 nodes per controller

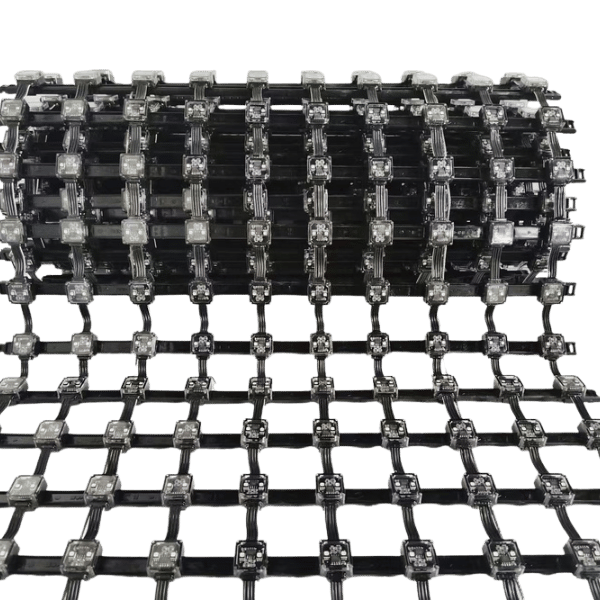

LED Mesh Screen
- Transparent media facade · large-scale
- Transparency 60-80% · wind load ≤120 km/h
- Pitch 50 / 55 / 62.5 / 83 / 100mm
- IP65 · synchronized playback
- Module-based install on curtain walls

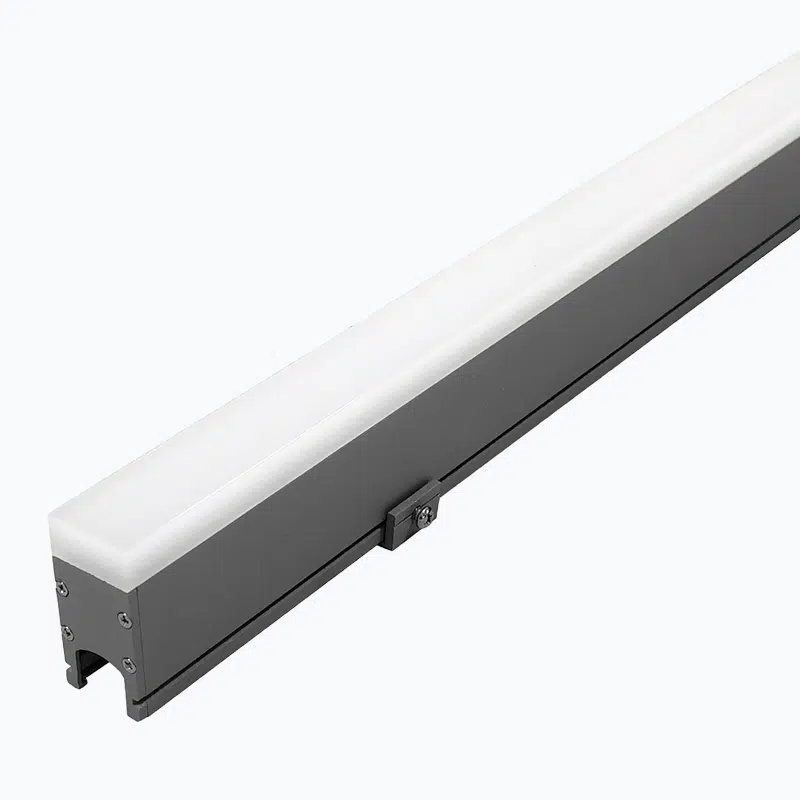

Facade Linear Light
- Wall grazing · contour & outline · Media Facade Screen
- IP65 · 0.3M / 0.5M / 0.7M / 1M
- 120° Wide optics
- Continuous run up to 12 m per circuit
- 1700-6000K / RGB / RGBW / Tunable White variants
Facade Lighting Decision Matrix — Which Product for Which Wall
Pick the row that matches your wall height and the effect you want. Product suggestions assume standard material reflectance; low-reflectance stone or dark cladding may need the next tier up in wattage.
| Wall Height | Effect Goal | Technique | Recommended Product | Typical Setback | Target Fc (LZ3 medium refl.) |
|---|---|---|---|---|---|
| ≤5 ft | Even wash | Wide beam | Wall Washer (12W) | 1.5 ft | 0.4-3 fc |
| 10 ft | Texture accent | Narrow graze | Linear (narrow) | 1.0 ft | 0.2-1.5 fc |
| 15 ft | Uniform illumination | Wide wash | Wall Washer (24W) | 2.0 ft | 0.2-1.5 fc |
| 20 ft | Landmark grazing | Narrow graze | Linear (narrow 36W) | 1.5 ft | 0.4-3 fc |
| Entry / door | Wayfinding accent | Up / down | Outdoor Wall Light | — | Ground 4 fc · Vertical 2 fc |
| Any | Architectural detail | Narrow spot | Outdoor Spot (10° beam) | Varies | Per target |
| Curtain wall | Dynamic media | Direct view | Mesh Screen or Pixel | On-plane | Pixel-level control |
Wall Washing vs Wall Grazing vs Floodlighting — Which Technique, Which Product
Five techniques cover nearly every commercial facade: wall washing (uniform), wall grazing (texture), flood lighting (broad coverage), spot lighting (accent), and linear lighting along architectural edges or direct-view pixel for dynamic effects. Each has a measurable signature in setback distance, beam spread, and footcandle output. Picking the wrong technique is the single biggest reason a facade lighting installation looks amateur on opening night — and why led facade lighting often outperforms generic exterior lighting retrofits on the same building facade.
Photometric Reference Table
| Technique | Beam | Wall Height | Setback | Spacing | Avg Illuminance | Max/Min Uniformity |
|---|---|---|---|---|---|---|
| Wall Grazing | Narrow | 10 ft | 1.0 ft | 3.0 ft | 9.8 Fc | 8.6 : 1 |
| 15 ft | 1.0 ft | 5.0 ft | 7.4 Fc | 4.8 : 1 | ||
| 20 ft | 1.5 ft | 5.0 ft | 4.6 Fc | 6.9 : 1 | ||
| Wall Washing | Wide | 5 ft | 1.5 ft | 1.0 ft | 20.4 Fc | 2.7 : 1 |
| 10 ft | 1.5 ft | 3.0 ft | 11.0 Fc | 6.0 : 1 | ||
| 20 ft | 2.5 ft | 5.0 ft | 4.5 Fc | 5.5 : 1 | ||
| Flood / Asymmetric | Asymmetric | 10 ft | 3.0 ft | 3.0 ft | 19.8 Fc | 9.2 : 1 |
| 20 ft | 4.0 ft | 5.0 ft | 9.0 Fc | 16.4 : 1 |
Values taken from BEGA Facade Floodlight System tech sheet; shows 5-pole plug-in luminaire at the default driver current. As your project may be different than surface reflectance and fixture current setting.
“It’s the one correction that makes most facade installs economical—beam selection. We drop 50W spot lights to 20W narrow-beam grazers on 10-12 ft walls all the time—same visual intensity to the pedestrian, 1/3 of the power bill, and the architect gets the texture they specified.”
Title 24 & BUG Rating Quick Reference (US Projects)
| Metric | LZ1 (rural) | LZ2 (urban cluster) | LZ3 (urban) |
|---|---|---|---|
| Area Wattage Allowance | 0.016 W/sqft | 0.019 W/sqft | 0.021 W/sqft |
| Initial Wattage Allowance | 150 W | 200 W | 250 W |
| Linear Wattage Allowance | 0.13 W/Lf | 0.15 W/Lf | 0.20 W/Lf |
| BUG Rating trigger | Any luminaire ≥6,200 initial lumens | ||
| Motion reduction (≤24 ft wall) | 50-90% power reduction required | ||
| BUG-exempt threshold | <40 W AND <6,200 lumens | ||
Values from California Energy Commission Title 24 Part 6, 2022 Code, Table 140.7-A and 130.2(b). California does not identify LZ4 areas.
Guangqi LED vs Conventional Metal Halide / Halogen — Total Cost of Ownership Over 10 Years
LED unit price is higher on day one. LED total cost over ten years is lower — often by 40-60% — because metal halide and halogen drag three quiet costs: energy, relamp labor, and warm-up penalties. Here is the line-item breakdown.
ROI Snapshot · Commercial Facade Retrofit
1-3 yrs
Typical payback period
(DLC rebate <1 yr)
55%+
Year-1 electricity reduction
vs MH/halogen facade
40-60%
10-year TCO advantage
vs conventional lighting
62%
Power draw reduction in the
Musco MH → LED retrofit case
Sources: ConservationMart LED energy study (250W MH 95W LED: 678.9 kWh/fixture/yr = 81.47 $ @ 0.12 $/kWh); Musco softball field retrofit (311.0 k W 117.9 k W across fixture set).
Line-Item TCO Comparison (10-Year Horizon, 100-Fixture Facade, LZ3)
| Metric | Guangqi LED (95 W/fixture) | Metal Halide (250 W) | Halogen (150 W) |
|---|---|---|---|
| Luminous efficacy | 120-150 lm/W | 70-80 lm/W (incl. ballast) | 12-20 lm/W |
| Rated life (L70) | 50,000 h | 6,000-20,000 h | ~2,000 h |
| Start-up to full output | <1 s | 15-30 min | <1 s |
| Mid-life lumen depreciation | 30% at 50,000 h | Up to 50% mid-life | Minimal, but shortest life |
| Annual kWh (100 fixtures, 11 h/night) | 38,137 kWh | 100,375 kWh | 60,225 kWh |
| 10-yr energy cost @ $0.12/kWh | $45,764 | $120,450 | $72,270 |
| Relamp labor cycles (10 yrs) | 1 replacement window | 5-7 cycles | 20+ cycles |
| DMX / DALI dimming | Native | Not supported | Not supported |
| Title 24 BUG compliance | Designed to pass | Often non-compliant | Non-compliant |
What Actually Separates LED Manufacturers — And What to Demand in RFQ
True reliability, however, actually hinges on three low profile specs that consumers commonly ignore: driver quality (constant-current dims smoothly at low output; constant-voltage may power flicker at power down), LED binning (3-step MacAdam maintains color uniformity across neighboring fixtures; 7-step exhibits obvious color shifting), and thermal management (Ta number indicates whether the fixture can handle a Shanghai July or Dubai August). Commercial lighting discussions on Reddit consistently identify these three as the key premium vs. amateur hardware differentiators. All Guangqi product lines specify on the spec sheet driver type, binning class, and Ta number.
And on something often overlooked: USAI, a top US brand, gets 1-star Google reviews for early failures and slower-than-average customer service. Brand halo is NOT reliability. It is specs, warranty terms, and fast support.
Want a TCO analysis built on your fixture count, electricity rate, and operating hours?
Request a custom TCO comparison →Project Results — Landmarks, Hotels & Commercial Facades We’ve Lit
Three typical project patterns, all from our own project bid library covering hospitality, retail and landmark facades. All include product mix, photometric target hit, along with ten-year cost path.
Hospitality · Southeast Asia
5-Star Hotel Facade Relight
- Facade area: 3,200 sqm, 4 elevations, 14 m tall
- Can they be added to CL?Added to the CL as:180 Wall Washer 24W+42 Spot 20W Each of the additional, listed on the left.
- Uniformity achieved: 5.8:1 max/min (target <6:1)
- Energy down 61% vs existing halogen flood
- Commissioning-to-handoff: 6 weeks
- General contractor feedback: spec matched RFQ line-for-line; zero on-site rework for compliance.
Landmark · Middle East
Municipal Tower Dynamic Relight
- Tower height: 78 m, 4-face RGBW dynamic
- Products: 2,400 × Pixel Light (pitch 100 mm) + DMX
- Holiday programs: 48 saved scenes via Madrix control
- Ta rating tested to +55°C (summer ambient 48°C)
- Warranty: 5 years from shipment, full driver coverage
- Ministry client inspection passed IP66 and EMC first try.
Retail · Europe
Flagship Store Facade & Signage
- Three-storey curtain wall, integrated mesh screen
- Products: 220 sqm Mesh Screen P25 + 36 × Linear
- Transparency 72% (daytime view-through preserved)
- Power factor 0.97, Title 24-equivalent compliant (EU)
- CE / RoHS / EMC tested, certificate bundle delivered
- Maintain daytime storefront visibility — delivered via high-transparency mesh.
Certifications, Standards & Cross-Region Compliance
Compliance is not a badge; it is a stack. Our fixtures ship with the documentation bundle procurement teams actually need to clear customs, pass commissioning, and avoid non-conformity penalties.
CE
EN 60598 · EU market
RoHS
Directive 2011/65/EU
IP65/IP66
IEC 60529
ETL
Optional · US/Canada
ISO 9001
Quality management
DLC
Optional · US rebate eligibility
Cross-Region Compliance Quick-Reference
| Region | Core Standards | Typical Requirement | Guangqi Default |
|---|---|---|---|
| USA | Title 24 Part 6 · UL 1598 · BUG | Wattage allowance, motion reduction ≤24 ft, BUG ≥6,200 lm | Designed to pass; ETL optional |
| EU | CE · EN 60598 · RoHS · EMC Directive | CE marking on every fixture + DoC | Bundled certificates shipped with order |
| Middle East | SASO (SA) · ESMA (UAE) · IP66 for Ta +50 °C | High-temperature Ta rating certification | Ta -30 to +55 °C tested variants |
| Southeast Asia | SIRIM (MY) · PSB (SG) · IP66 tropical | Monsoon/humidity resistance, anti-salt-fog optional | Marine-grade coating available |
For jurisdictions not listed, we confirm applicable standards at RFQ and present a compliance mapping memo prior to the PO.
Procurement Guide — MOQ, Lead Time, Customization & OEM
Project procurement teams spend most of their time calculating hidden costs and piecing together fuzzy clauses. This section brings clarity to the sourcing variables you need to specify the PO, including the warranty details manufacturers tend to obscure:
Pricing Factors Framework
Final price is a function of the specing variables listed below. Instead of a direct-to-project list price, we prefer to issue a scoped offer once we know your spec:
Product family & wattage range
wall washer vs linear vs mesh libraries have a different bill-of-materials total
Driver style & control protocol
Casambi, DMX512, DALI-2, 0-10V all carry different driver expenses
LED binning class
3-step MacAdam contrast steps vs 5-step contrast steps vs 7-step contrast steps determine die cost and uniformity
CRI level
standard 80+ vs premium 90+ with R9>50 for retail and hospitality projects
Ingress & operating environment
IP65 vs IP66, Ta -30 to +50 vs +55 C for hot-climate projects
Certification level
CE baseline without testing; ETL, DLC, SASO, ESMA all incur extra testing and unit cost
Finish & enclosure
standard powder coat vs marine anti-corrosion vs RAL custom
Order volume
project-scale quantities can receive tiered discounts; small one-off quantities may receive a setup charge
MOQ, Lead Time & Warranty — The Terms Most Suppliers Bury
| Topic | Guangqi Terms | Why It Matters |
|---|---|---|
| Sample MOQ | Paid sample available, cost credited back on volume PO | Lets your engineer validate photometrics before commitment |
| Project MOQ | Tiered by product line; project-scale flexible | Small refit jobs welcome; we do not force over-ordering |
| Sample lead time | Request lead time estimate at RFQ stage | Accounts for custom CCT, binning, or finish requirements |
| Batch lead time | Confirmed on PO, includes testing + IES verification | No “4-week” marketing quote that becomes 12 weeks in reality |
| OEM / ODM | Supported on all product lines · custom logo/color/packaging | White-label partners can rebrand without retooling |
| Custom CCT / beam / CRI | CCT 1700-6500 K / RGB / RGBW · beam 5° / 8° / 10° / 15° / 25° / 40° / 60° / 10°x45° / 10°x65° · CRI 70+/ 80+/90+/95+ | Match specific brand standards or art-lighting requirements |
| Payment terms | T/T 30% deposit · 70% before shipment · L/C welcome | Aligned with standard export practice |
| Shipping | FOB Shenzhen · CIF / DDP on request · air/sea | Flexible on logistics and Incoterms |
| Warranty start date | 5 years from shipment date, no hour cap | Industry chronic issue: “from purchase” + hour caps. We do not use either. |
| Warranty scope | Driver, LED chip, housing all covered as a system | Drivers are the most common failure point; they are included, not carved out |
Lead time & MOQ confirmed at PO. Final quote varies by configuration (see above).
Guangqi Lighting Factory Tour — Precision Architectural LED Manufacturing
Architectural Lighting Engineering & Calculation Tools
Access our suite of professional engineering tools designed to streamline your commercial facade lighting projects. Calculate long-term costs, specify correct photometric fixtures, and verify rigorous compliance standards instantly.
Facade TCO Calculator
Estimate the 10-year total cost of ownership for LED facade lighting versus conventional metal halide or halogen fixtures. Input your operational metrics for an instant financial breakdown.
Open CalculatorFacade Lighting Decision Helper
Pick the precise facade lighting product based on your wall height, material reflectance, and architectural design goal. Get instant setback, spacing, and target footcandle metrics.
Launch HelperCompliance Checker
Check your proposed facade lighting design against California Title 24 Part 6 outdoor lighting rules. Quickly identify BUG-rating triggers and wattage allowance overruns.
Run CheckerStart Your Facade Lighting Project
Send us a rendered facade elevation, reference photo, target aesthetic, and operating schedule; we return a scoped line-item quote, Dialux analysis, and IES photometric files.
Frequently Asked Questions
Interiors in Lighting Zone 3 (urban) with medium-reflectance facade/clip material should aim for target illuminance of 0.2-1.5 footcandles according to IES RP-43-22. Concourse transitions can be higher at 4 footcandles horizontally and 2 footcandles vertically. Use the headline photometric table and the quick-reference Title 24 figures above to approximate the requisite wattage.
Yes. CCT is field adjustable from 2700 K to 6500 K on all lines; tunable-white and RGBW options are available on linear and pixel products. Standard beam angles on spot and wall washer lines include 10, 15, 25, 45, and 90. Customer-specified CRI (80+, 90+, 95+ with R9>50) and binning class (3-step, 5-step MacAdam) is determined on a project-by-project basis.
Minimum order quantity scaled to product line and project scope; we recognize project-scale orders including refits. Sample orders accepted with sample cost rebated against subsequent PO. Lead time, Y/N, warranty depends on scope of customization (CCT, binning, finish, certification stack), and is stated at RFQ. We do not quote overly optimistic lead times that later slide. See the Procurement table for specifics.
All product lines support 0-10V dimming by default. DMX512 and DALI-2 support is available on wall washer, spot, linear, and pixel models. RDM remote management of DMX fixtures is supported by our system for fault diagnostics. Casambi and Bluetooth mesh control is supported on request.
Rated life is 50,000 hours to L70 (70% initial lumen maintenance). Warranty is 5 years from shipment date with no hour cap—a conscious departure from industry B2B terminology that void coverage after a certain number of operating hours or beginning the clock from purchase regardless of shelf time. Also includes driver, LED chip and housing; 7 and 10-year extended warranty options are available on project-scale orders.
Yes. We can provide Photometric IES files for all lines and options pre-PO; your design professional can run Dialux or AGi32 analysis to confirm uniformity and compliance. We provide installation drawings, wiring diagrams and remote commissioning support for your project. On project-scale orders, on-site commissioning support can be scheduled.
