How to Buy LED High Bay Lights: A Buyer’s Guide for Warehouses, Factories, and Industrial Spaces

Buying the wrong LED high bay light costs you twice – on the energy bill that never gets as low as the spec sheet said it would, and twice again on the change order when forklift drivers bemoan the glare or batch inspectors spot surface flaws. This LED high bay light buying guide for warehouses, factories, and large industrial spaces walks through the eight decisions that separate a competent specification for your purchase from a fixture that just works in your ceiling: mounting height versus lumens, UFO versus linear form factor, color temperature, IP and IK ratings, retrofit ROI math, application-driven choice, the certification short-list every B2B buyer must have, and the 2026-2030 controls landscape demanding its injection-molded luminaire today.

What Are LED High Bay Lights? Mounting Height, Lumens, and Where They’re Used

High bay LED fixtures are ceiling-mounted luminaires aimed at 15-40 ft. (4.5 to 12 m) mounting heights and capable of producing 10,000-55,000 lumens each (varying beam angles to combat the environment-to-work surface distance). Category boundary does not depend on shape (ring UFO fixtures or linear form factors qualify) it depends on lumens-per-fixture and mounting height; a 6,000 lumen pendant at 14 feet is not a high bay-it’s a low bay. A 24,000 lumen UFO at 28 feet is.

What Are LED High Bay Lights?

High bay LED lights are industrial-grade fixtures utilizing solid-state LED technology that are designed for ceiling heights of 15-40 ft. (4.5-12 m) and delivering over 10,000 lumens each with focused beam patterns that offset the propagation distance to the work surface. High bay lights are designed for the geometry of large industrial spaces. These luminaires are replacing older HID fixtures such as MH, HPS, and fluorescent T5 lights in warehouses, factories, gymnasiums, aircraft hangars, big box retailers, distribution centers, and indoor sports facilities to drastically reduce energy bills by 60-75% and have longer maintenance cycles lasting 50,000+ hours instead of 6,000-24,000 hours. A comparative ROI analysis of these packages reveals the true difference is driver quality, binning efficiency, and the ambient environment management not just lumen output.

By addressing distance attenuation using higher lumen output and narrower beam angles, high bay design tackles two challenges traditional lighting solutions can’t. Since the inverse-square law impacts whether a 30′ high fixture will offer 25% or 100% of the light intensity of a 15′ one, high bay fixtures deliver more lumens in a narrower beam to compensate. In addition, since the light distribution has to reach over tall shelves and machinery, the fixtures emit vertically down the aisle or aisle and bottom of racking, not just in the aisle; this is the reason UFO and linear high bay lights are the fixtures of choice in high-ceiling industrial warehouses rather than standard pendant down lights designed for “flatter” spaces.

U.S. Department of Energy LED Lighting guidance reports replacing legacy commercial fixtures can save up to 75%, while high bay LED applications – already running in many facilities at 8-24 hours per day – recoup fixture costs fastest. Low-bay equivalents are appropriate when ceilings are less than 15’, and even outdoor covered canopies and loading docks require IP66 wet-rated LED flood lights.

High Bay vs. Low Bay vs. Linear vs. UFO — Sorting Out the Form Factors

Form factor profiles vary per vendor and the chart below summarizes trade-offs among major industrial grade LED providers – treat the cost tiers as relative prices ($, $$, $$$) not exact quotes. Suitability is defined by combination of three high-ceiling conditions: ceiling height, beam angle profile, and floor-plan aspect ratio, with open square being more common than long narrow aisles. Among types of high bay light fixtures available, round UFOs and linear shapes are not universally superior – each is the right LED high bay for a specific geometry. Selecting from the four common types of high bay variants below depends on ceiling shape, load pattern, and rack layout.

High Bay vs. Low Bay: What’s the Difference?

Low bay fixtures are designed for 12-20 foot ceiling heights and generally have wattage of 4,000-12,000 with broad beam angles (120+) to spread illumination evenly across a close floor. High bay models range from 15-40 feet with 10,000-55,000 lumens and (usually) narrower beam angles (60-120). The 15-20 foot zone is a crossover not a conflict – do you want to throw illumination past your racking and machinery (stick with a high bay fixture) or is capturing an even flat floor more important (low bay fixtures cope just fine)? Greater than 40 feet dictates the ‘power high bay’ or the stadium-class fixture.

Use an UFO if the space is close to square, the ceiling is level, and uniform illumination is desired from as few mounting points as possible. Round high bay fixtures mount to a single hook and efficiently expel heat via die-cast aluminum cases – the shape has been championed for new build projects since it takes the least time to assemble the typical number of fixtures.

Opt for a linear high bay fixture if the space is dominated by long, parallel rack aisles less than 12’ wide, or asymmetric beam patterns along the aisle while washing rack faces are needed. Linear high bay fixtures are the standard change out for fluorescent T5 fixtures – they saddle the same mount locations and project a photometric pattern directly down the aisle to light both rack faces without excessive waste on the roof grid.

How Many Lumens Do You Need? Calculating by Mounting Height and Application

For ceilings 15-40 feet high, most high bay purchasing guides conflate 3+ different standard layers into one “lumens per square foot” rule and call it engineering. They’re not the same thing. IES Handbook recommended footcandles are illumination design targets – what your space needs for safe, productive work. ASHRAE 90.1-2022 lighting power density (LPD) values are energy ceilings – the max watts per sq ft a code-compliant design may install. OSHA 1910.305 min illumination levels are legal floors – 5 fc general industrial, 10 fc for active loading docks, 30+ fc for first-aid stations and other hazard zones. A purchasing spec that confuses “we need 30 fc” (IES design target) with “we can use 1.0 W/ft” (no longer permitted under ASHRAE 90.1-2022) results in either over-lit spaces that fail energy code or under-lit spaces that meet code but not the work demands.

How Many LED High Bay Lights Do I Need?

The five-step calculation below uses the IES Handbook lumen-method formula, which the Illuminating Engineering Society LM-79 and Handbook 11th edition describe in detail. Treat any “X fixtures per 100 sq ft” rule of thumb as a sanity check, not a substitute for the calculation.

1. Measure mounting height floor-to-fixture in feet (not ceiling height – subtract pendant drop).
2. Identify target footcandles by application (IES Handbook). Warehouse general 30 fc; manufacturing 50 fc; assembly fine work 75-100 fc.
3. Calculate floor area in square feet for the lit zone.
4. Total lumens needed = footcandles × area ÷ Coefficient of Utilization (CU, typically 0.6–0.9 indoor industrial). Apply Light Loss Factor (LLF ≈ 0.85) for dust + lumen depreciation.
5. Fixture count = total lumens ÷ verified per-fixture lumens (use IES LM-79 reports, not spec-sheet “system lumens” which often inflate by 10–15%).

Spacing-to-mounting-height (S/MH) ratio of 0.8-1.5 is the IES design practice for uniform illumination; tighter ratios reduce dark spots, looser ratios cut fixture count at the cost of uniformity. The center column wattages assume current 130-180 lm/W LED packages; older 100 lm/W stock requires 30-50% higher wattage for the same lumen output. Many high bay lights come in multiple wattage tiers, but the number of lights depends primarily on lumen output, not nameplate watts – many lights are designed for 130 lm/W headline efficacy that drops to 105-115 lm/W in the field due to LLD, dust, and ambient temperature effects. The right lighting solution for any given facility is the one whose lights provide the target footcandles after Light Loss Factor is applied to verified LM-79 per-fixture lumens. When uncertain, request input from a qualified lighting expert or photometric simulation service before committing to a fixture count.

Use our LED product selector tool to filter by wattage, IP rating, and application — or skip the manual pass and request a DIALux simulation through DIALux lighting design services, which models your floor plan against IES targets before any fixtures ship.

Color Temperature, CRI, and IP/IK Rating — Matching Light Quality to Environment

Three variables determine whether a high bay makes usable light or ugly glare: correlated color temperature (CCT), color rendering, and ingress / impact protection. The US Department of Energy’s LED Basics guidance explicitly alerts retailers that CCT summarizes out color perception with “a significant loss of information” and that “the [color rendering] index has long been criticized as far from a perfect metric of color quality” – a 4000K / CRI 80 fixture from one manufacturer may render colors very differently than a 4000K / CRI 80 fixture from a different manufacturer. DOE then discourages relying on CCT and CRI alone and recommends complementing those both with IES TM-30 metrics (Rf for fidelity, Rg for gamut).

What Color Temperature Is Best for High Bay Lighting?

4000K is the standard industrial choice for warehousing, parking, and mixed retail / industrial. 5000K for production, assembly, inspection, and “cold bias” shop floors. 3500K for retail, showrooms, hospitality with mixed daylight. 6500K only for selected inspection (paint defect, food sorting, quality control labs). Use 4000K / CRI 80 for just-barely-OK general industrial, 5000K / 80 CRI / R9 50 for color-critical working—good red rendering is what separates food, painted parts, and human flesh looking convincing from, well, not.

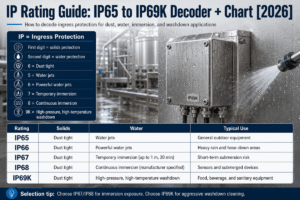

For ingress protection, IP65 is the indoor industrial baseline — full dust ingress protection plus resistance to water jets from any direction per IEC 60529. IP66 adds resistance to powerful water jets and is required for car wash bays, food processing wash zones, dock canopies, and any covered outdoor application. IP67 tolerates short submersion (rare for high bay). IP69K handles steam-clean high-pressure wash and applies to food production lines that pressure wash equipment in place.

Impact resistance via the IK rating (IEC 62262) is undervalued in most procurement specs. IK08 (5 joule impact) is the typical industrial baseline. IK10 (20 joule) belongs in forklift zones, gymnasiums and indoor sports facilities (ball strikes), and any aisle where pallet loading routinely brushes the lower fixture body. The cost difference between IK08 and IK10 is small at order time and very large after the first replacement cycle. IP66-rated outdoor LED street lights use the same housing logic.

LED vs. Metal Halide and Fluorescent — Energy, Lifespan, and the 18-Month Retrofit Math

Energy savings claims of 60–80% assume specific operating hours, electricity rates, and binning grade — they do not apply universally. Driver quality, LED package binning, and ambient temperature management determine actual lifetime; spec-sheet “system lumens” inflate by ±15% over verified IES LM-79 output; and the retrofit math below uses bracketed sensitivity rather than nameplate ratings. Before committing to a payback claim, verify the four assumption layers: feedstock quality (driver and package binning), compliance constraints (ASHRAE 90.1 LPD limits and DLC qualification), economic sensitivity (€/kWh × hours/day × rebate eligibility), and system-level failure modes (HVAC interactions, dimmer compatibility, control retrofit cost). Otherwise the 18-month payback that closes the deal becomes a four-year payback in the field.

Source reference data consolidated from DOE LED Lighting and the IEA / OECD Light’s Labour’s Lost study, LED life projection from IES LM-80 / TM-21 data.

The 18-Month Metal Halide Retrofit Math (Guangqi Europe Warehouse Dataset)

A European logistics warehouse retrofit operated by a Guangqi distribution partner replaced 320 fixtures of 400W metal halide with 200W LED high bays at 4000K, IP65, with occupancy-sensor dimming. Operating window: 14 hours per day, six days per week, ≈ 4,400 hours per year. At €0.18/kWh, the 200W vs 400W draw differential (with sensor-driven 30% off-peak dimming factored in) saved ≈ 880 kWh per fixture per year — multiplied across 320 fixtures and the local rate, ≈ €50,700 per year in energy. Avoided maintenance (two MH bulb relamps plus one ballast replacement budgeted across the 18-month window at €25 per fixture per service event) added ≈ €8,000 per year. Project capex of ≈ €105,000 (fixtures, drivers, install, commissioning) divided by ≈ €58,700 per year in combined savings produced a payback of ≈ 1.78 years. Best-case retrofit assumptions: long operating hours, mid-tier European electricity rate, occupancy sensors enabled, rebate-eligible.

For a more conservative reference, the U.S. Department of Energy Better Buildings Volvo Group North America implementation summary reports a simple payback of approximately four to five years for an LED-with-occupancy-sensor retrofit at moderate operating hours and electricity rates (DOE Better Buildings Solution Center is a secondary aggregator; consult Volvo’s own project documentation for primary unit-level data). That figure tracks more realistically with North American industrial buildings without the European energy-cost backdrop. Real ROI for any given facility falls inside the 1.5–5 year envelope and depends primarily on operating hours and the kWh tariff.

Sensitivity table assumes 320 × 200W LED fixtures replacing 320 × 400W MH at €105,000 project cost and includes avoided maintenance. Utility rebates (where available) compress the payback by 6–18 months. Schedule a DIALux retrofit assessment to model your specific operating hours and utility rate against the 1.5–5 year envelope.

The 2022 ASHRAE 90.1 building code dropped commercial LPD allowances for the most common space types; ENERGY STAR and DLC programs boosted the lumen/W only threshold. In practice, if new construction in your state has to be LED to meet the energy code, it makes another case for the switch to save the energy.

Warehouse, Factory, Garage, or Gym? Application-Driven Selection

Application determines spec priorities. The matrix below best exhibits typical multiple application cases in common high bay types. Eight-hour projectors use higher wattage, color-tuned LED chips. Use space type application listed as a ceiling in application table; future retrofit projects are easier on a stated lumen, not a stated wattage—your bay fixture must meet the illumination needs first. Use lower starting wattage on ballast if parameters allow, replace only if lumen results compel redesign.

Warehouse general defaults to 4000K linear or UFO 15-250W. ASHRAE 90.1-2022 Building Area Method shows Warehouse space-type max LPD at ~0.4 W/ft—check your jurisdiction’s adopted version (90.1-2025 is scheduled to reduce allowances). Open-floors are best with UFOs-elongated wide reflector. Rack-aisle configurations require low-glare asymmetric illuminators linear or UFO. Manufacturing going to 5000K & 50fc. Vibration rated drivers near presses with KI10 impact rating over inspection stations.

Auto shop garages fall just above the low-bay cutoff, need to be specified at 5000K with anti-glare morays if used for paint apps. Hybrids 50fc and 5000K for hoods, and automated. Gymnasiums just below KI10 impact rating for live (camera) broadcast uses–tunable white is coming into vogue for sports modes. Aircraft hangars avoid head shadow with 5000K, 50fc fixtures for foreign-object-debris pre-occupation, optionally explosion rated in fueling zones. Cold storage specifies 40F drivers (standard hospital type electrolytic capacitors die south of 15F) and IP66 diffusers.

Drivers, Dimming, and Certifications — The B2B Procurement Checklist

B2B procurement differs markedly from choosing a fixture from the catalog. A seven-point specification checklist below is a rule out / proof in guida to a fixture that really will run 50,000+ hours, rather than satisfy the PO without lasting in year three.

DLC SSL Premium — What It Actually Requires

DLC qualifications come in two distinct lanes. DLC SSL (Solid State Lighting) qualifies the fixture itself; DLC NLC (Networked Lighting Controls) qualifies the controls system. They are not interchangeable. The DesignLights Consortium SSL Premium Technical Requirements tighten several specifications beyond DLC Standard – including a Unified Glare Rating (UGR) corrected ceiling, continuous dimming support, an L90 lumen-maintenance threshold, and driver In-Situ Temperature Measurement Test (ISTMT) documentation that proves the LED junction temperature stays within manufacturer-rated limits at the listed wattage. Treat the published DLC version (currently V5.1, with version updates released periodically) as the authoritative source for current numerical thresholds – UGR alone disqualifies many low-cost fixtures sold under generic “high bay” descriptions.

Flicker and Temporal Light Modulation (TLM) — The Hidden Procurement Risk

Flicker is invisible at the conscious level but causes documented problems in industrial settings: stroboscopic effects on rotating machinery, false readings from forklift safety cameras, eye strain over long shifts, and migraine-class visual disturbance for sensitive operators. The U.S. Department of Energy publishes a flicker brief and the IEEE 1789-2015 standard defines the recommended exposure limits – most LED high bay fixtures with constant-current drivers and good capacitor design pass, but 0-10V dimmed loads at 10-30% output and incompatible wall-box dimmers are common failure modes.

Modern flicker procurement language draws from two converging frameworks: IEEE 1789 recommends maximum modulation depths versus frequency, and EU Ecodesign Regulation 2019/2020 (effective for products on the EU market) codifies the SVM (Stroboscopic Visibility Measure) and Pst-LM short-term flicker severity metrics. As a working baseline, target Pst-LM ≤ 1.0 and SVM ≤ 0.4 across the full dimming range, and align the exact numerical thresholds with the regulation governing your market. Demand pre-purchase TLM measurement data and verify driver-dimmer compatibility for each control protocol you intend to use. The DALI / DMX / 0-10V control systems matrix below shows which dimming protocols hold up best in industrial loads.

What’s Next: Smart Controls, IoT Sensors, and the 2026-2030 High Bay Outlook

Five evolving trends are influencing high bay procurements for project investments starting in 2026 and beyond. These trends influence both the fixtures you purchase now as well as the building infrastructure you build out to accommodate those fixtures now.

First, DLC Networked Lighting Controls v5 / v5.2 requirements are tightening. Per DesignLights Consortium NLC v5, qualifying systems must integrate occupancy sensing, daylight harvesting, and continuous dimming. NLC v5.2 Draft 1 (released March 30, 2026) raises the bar on sensor granularity and qualified product list (QPL) device interoperability. Many U.S. utility rebates 2026–2027 will require NLC-listed networked controls, not just DLC SSL Premium fixtures. Specifying smart-ready high bay luminaires today preserves rebate eligibility tomorrow.

Second, the color-tunable (3000K-6500K category-tone shifting) high bay market is migrating from hotels/colleges into manufacturing for circadian rhythm co-optimized factory shift plans – coolest white for early shift alertness, warmest redder tones for late-shift fatigue mitigation. Adoption is still minuscule, but trending where 24/7 operating hours couple with worker-fatigue litigation risk.

Third, Power-over-Ethernet (PoE), and DC microgrid integration into LED lighting is transforming low-voltage distribution and control platforms. Based on Fortune Business insights, Power-over-Ethernet (PoE) LED volume increased from 192 million units in 2018 to a forecasted 544 million units by 2026 – or roughly a 2.8 times 8-year factor. Power-overEthernet (PoE) eliminates the need for high-voltage AC drivers entirely,and reduces copper wire mass by 30-40%. However, maximum per-fixture power is limited by existing IEEE 802.3bt PoE budgets (90W/port), so PoE is trending in offices, retail, and small-bay applications as well as emerging in low-wattage UFO high bay luminaires.

Fourth, real-time, predictive maintenance driven by integrated sensors is reducing emergency removal events. Lumen flux sensors along with junction temperature and voltage sensing feed into building-management or CMMS pieces causing fixtures to age toward L70 prematurely. Early adopters are reporting roughly 20-30% reductions in lighting maintenance line items and avoiding forklift/boom lift calls to replace recently deceased fixtures.

Fifth, more restrictive build-out allowances for ASHRAE 90.1-2025 LPD rules and the Minamata phase-out of mercury containing lamps has lessened the game of off-loading legacy technology. It is expected that ASHRAE 90.1-2025 will further lessen allowable lighting power density allowance across most space types, rendering non-LED retrofits non-conforming in new facilities for many U.S. states. And the Minamata Convention regulations force the mercury deadening phase-out of T5/T8 fluorescent lights and tubes even faster. By 2030, fluorescent high bay fixtures will be effectively unobtainable in compliant supply chains.

Procurement decision. For investments with a 5-year expected operating life, basic 0-10V dimming works, for 10+ years or new construction, specify DLC NLC v5 operating-capable fixtures with open control protocols (DALI-2 or 0-10V) and sensor-equipped housings – and avoid proprietary wireless-mesh systems that locks-in the owner to a single controls-cloud vendor. Choices based on open standards for controls-enabled fixtures and controls-cells system enable future-based reconfigurability.
